Replacing Additional Coolant Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Replace additional coolant pump.
1. 1.1. Unscrew fastening screws -1- .
2. 1.2. Fit holder -2- on new additional coolant pump.
3. 1.3. Screw in and tighten fastening screws -1- . → Tightening Torque: 1.5 Nm (1 ft. lb.)

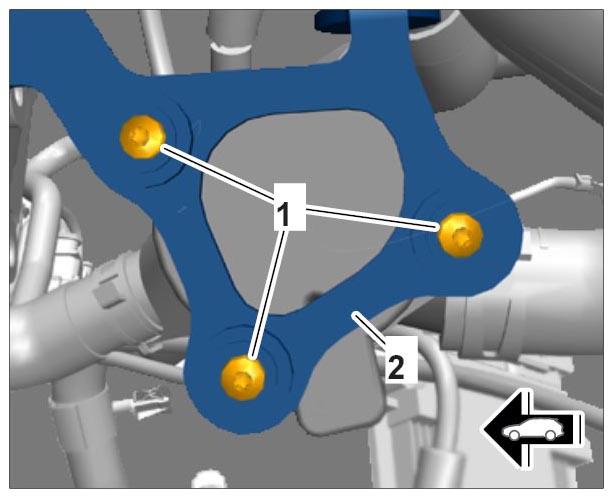

  Fig 1: Identifying Coolant Pump Holder And Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
