Removing Additional Coolant Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Cover the engine .
For this work, the worker must lie on the engine .
The additional coolant pump is difficult to reach .

Cover the intake-air distributor with covers.
Expose the engine wire harness.
1. 2.1. Cut tie-wrap -1- and open the clip -2- .
2. 2.2. Unscrew fastening screws -3- and remove engine wire harness holder -4- .

  Fig 1: Identifying Engine Wire Harness Screws And Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect additional coolant pump.
1. 3.1. Unclip hose holder -1- .
2. 3.2. Loosen fastening nut -2- and remove cable holder -3- .
3. 3.3. Unscrew fastening screws -4- .

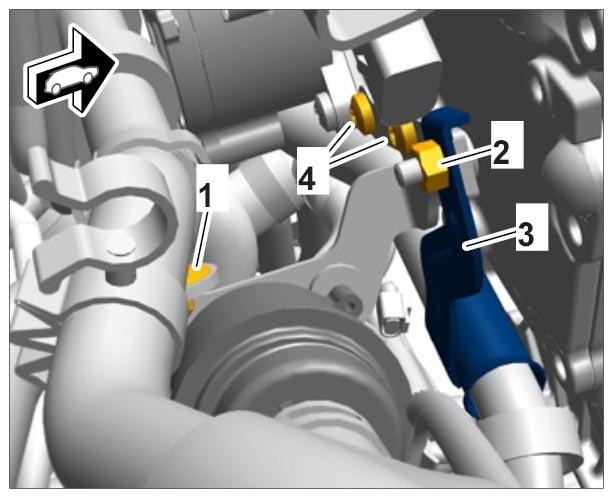

  Fig 2: Identifying Coolant Pump Holder And Fasteners
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Disconnect coolant hoses and cable plug.
1. 4.1. Loosen clamps -1- and pull off coolant hoses.
2. 4.2. Pull off cable plugs -2- .
3. 4.3. Remove additional coolant pump with holder -3- .

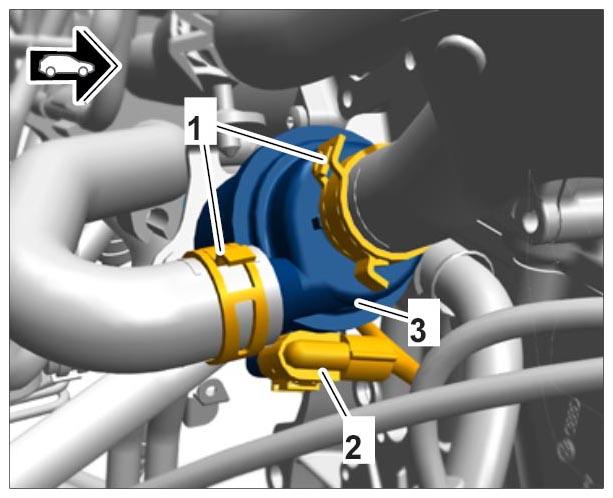

  Fig 3: Identifying Coolant Hoses And Cable Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
