Installing Additional Coolant Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Secure coolant hoses and cable plug.
1. 1.1. Place additional coolant pump with holder -3- in installation position.
2. 1.2. Plug in cable plug -2- .
3. 1.3. Attach coolant hoses and fasten clamps -1- .

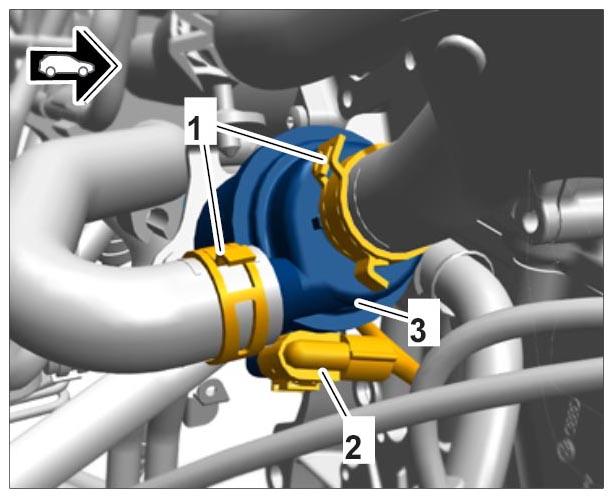

  Fig 1: Identifying Coolant Hoses And Cable Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure additional coolant pump.
1. 2.1. Screw in and tighten fastening screws -4- . → Tightening Torque: 10 Nm (7.5 ft. lb.)
2. 2.2. Position cable holder -3- and tighten fastening nut -2- . → Tightening Torque: 10 Nm (7.5 ft. lb.)
3. 2.3. Clip in hose holder -1- .

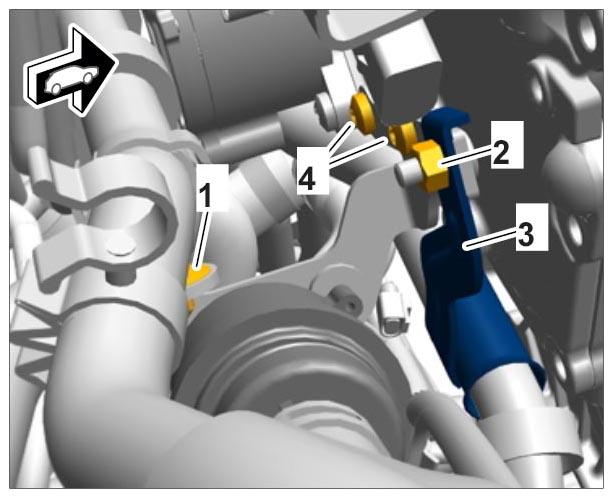

  Fig 2: Identifying Coolant Pump Holder And Fasteners
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure engine wire harness.
1. 3.1. Position engine wire harness holder -4- and tighten fastening screws -3- . → Tightening Torque: 10 Nm (7.5 ft. lb.)
2. 3.2. Secure engine wire harness with a clip -2- and tie-wrap -1- .

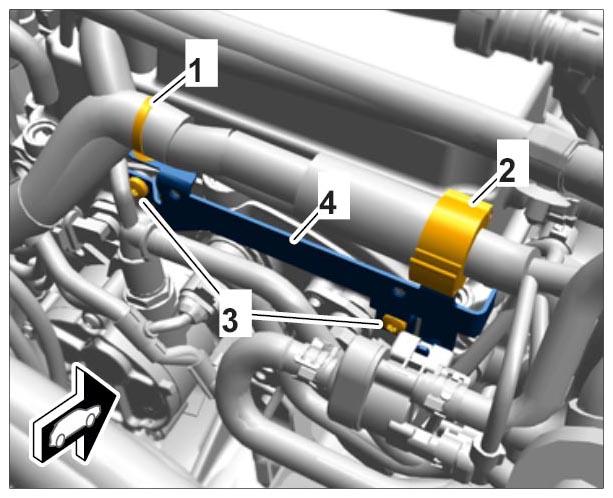

  Fig 3: Identifying Engine Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
