Removing Coolant Reservoir

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Avoid contact with hot fluid.

→ Wear personal protective gear.

Information

After pulling off the hoses, close off all openings immediately using commercially available rubber stoppers.

When fitting parts, do not remove stoppers until shortly before installation.

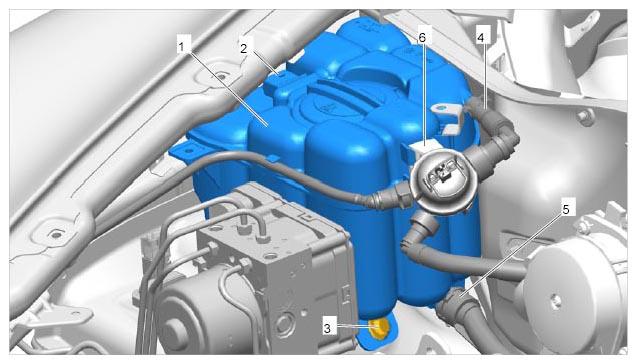

Fig 1: Overview Of Coolant Reservoir (Petrol Engine)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant Reservoir
Connector For Water Level Sensor
Fastening Screw For Coolant Reservoir
Breather Hose
Coolant Hose
Bleeder Valve Bracket

Remove fuel filter housing at the holder. → (includes draining water from fuel filter)
1. 1.1. Only on diesel engines.
  Do Not Disconnect Fuel Lines .
Remove holder for fuel filter housing.
1. 2.1. Only on diesel engines.
Drain the coolant reservoir -1- using suction.
Unclip bleeder valve bracket -6- from the coolant reservoir -1- .
1. 4.1. Only for petrol engines.
Slide the hose clamp back and pull the breather hose -4- off the coolant reservoir.
Unscrew fastening screw -3- .
Remove coolant reservoir -1- from the guides -7- by pulling it towards the center -arrow- .

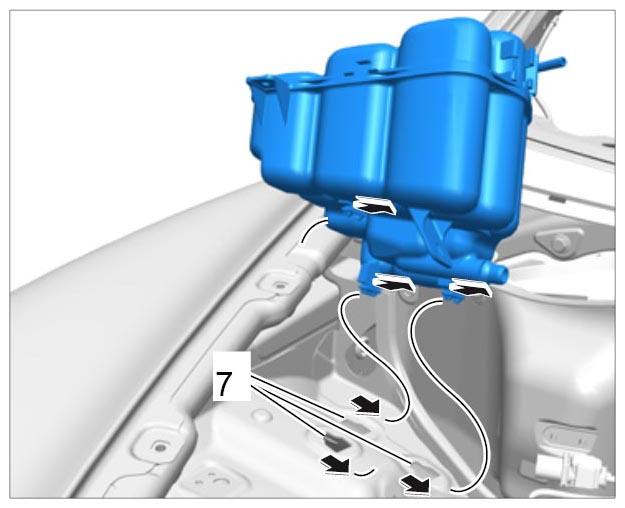

Fig 2: Removing Coolant Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release and disconnect electric plug connection -2- from the water level sensor.
Release locking mechanism on the coolant hose -5- and pull the coolant hose -5- off the coolant reservoir.
