WM 193817 Draining And Filling Coolant (Includes Bleeding) (Cayenne S E-Hybrid): Tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|

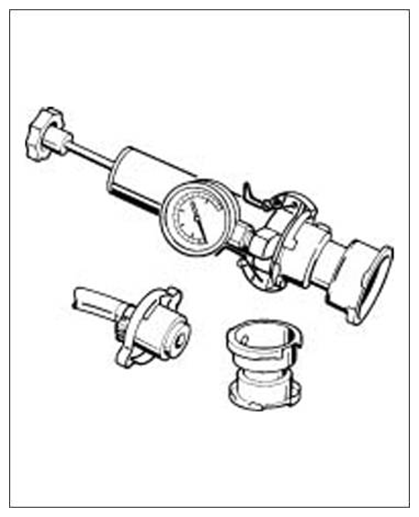

| Cooling System Tester | Workshop Equipment | WE 1069 | ||
| Filling Device | Special Tool | 9696 | ||

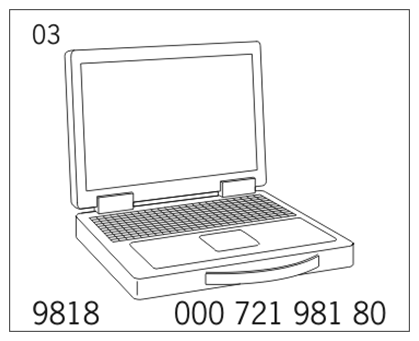

| PIWIS Tester II | Special Tool | 9818 | ||
| Assembly Tools For Spring Band Clamps | Commercially Available Tool | Nr. 72 | ||
| Flexible Screwdriver a/f 7 | Commercially Available Tool | Nr. 73-1 |
- -A- - Flexible screwdriver a/f 7 (for loosening or tightening screw-type hose clamps) Flexible Screwdriver a/f 7 Nr. 73-1
- -B- - Antifreeze testing device (for checking the antifreeze content in the cooling system. The design may be different from that shown here.)
- -C- - Spring band clamp pliers (for opening and closing spring band clamps) Assembly Tools For Spring Band Clamps Nr. 72
- -1- - Canister (canister with lifting tube, capacity of approx. 30 l, with volume scale)
- -2- - Hose extension
- -3- - Adapter K 22 (supplied with radiator vacuum-filling device) Not used for the Cayenne!
- -4- - Venturi nozzle (supplied with radiator vacuum-filling device)
- -5- - Adapter K 65 (supplied with radiator vacuum-filling device) For the Cayenne! => (Fitted instead of the cap on the coolant expansion tank.)
- -6- - Pressure gauge (supplied with radiator vacuum-filling device)
