Tools and materials

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

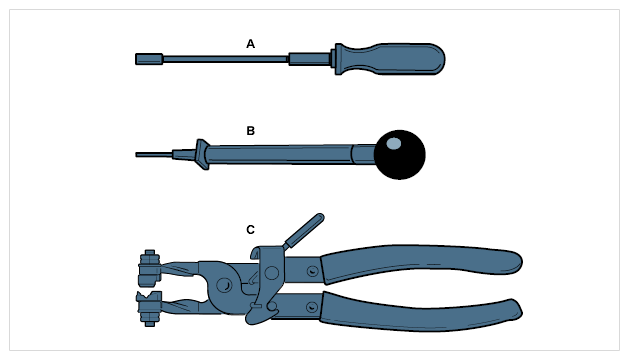

Fig 1: Identifying Special Tools
G09932894Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A-  - Flexible screwdriver a/f 7 (for loosening or tightening screw-type hose clamps) Flexible Screwdriver a/f 7 Nr. 73-1
  2. -B-  - Antifreeze testing device (for checking the antifreeze content in the cooling system. The design may be different from that shown here.)
  3. -C-  - Spring band clamp pliers (for opening and closing spring band clamps) Spring Band Clamp Pliers WE 1646

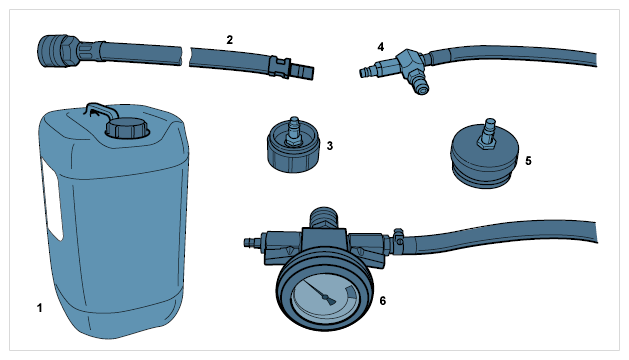

Fig 2: Identifying Special Tools
G09932895Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - Canister (canister with lifting tube, 30-litre capacity, with volume scale)
  2. -2-  - Hose extension
  3. -3-  - Adapter K 22 (supplied with radiator vacuum-filling device)
  4. -4-  - Venturi nozzle (supplied with radiator vacuum-filling device)
  5. -5-  - Adapter K 60 (supplied with radiator vacuum-filling device)
  6. -6-  - Pressure gauge (supplied with radiator vacuum-filling device)
