Special Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

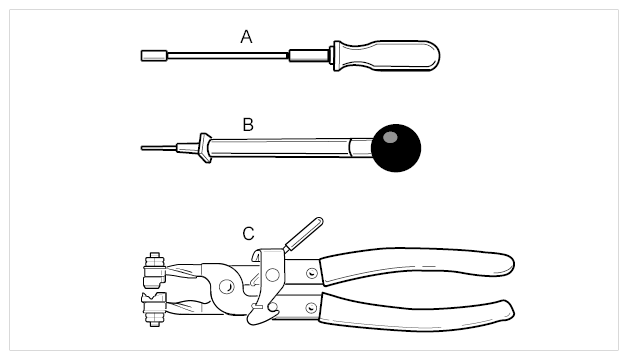

Fig 1: Identifying Special Tools
G09932919Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A-  - Flexible screwdriver a/f 7 (for loosening and tightening screw-type hose clamps) Flexible Screwdriver Nr. 73-1
  2. -B-  - Antifreeze tester (for checking the antifreeze content in the cooling system. The design can deviate from that shown in the picture.)
  3. -C-  - Spring band clamp pliers (for opening and closing spring band clamps) Assembly Tools For Spring Band Clamps Nr. 72
