Removing Cooling-Air Flaps

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unscrew Screws -6-  .
  2. Unscrew Screws -2-  .
  3. Unscrew Screws -3-  .
  4. Disconnect electric plug connection at the cooling-air flaps -1-  .
  5. Remove cooling-air flaps -1-  by pulling them up and press the bracket -4-  forward slightly.

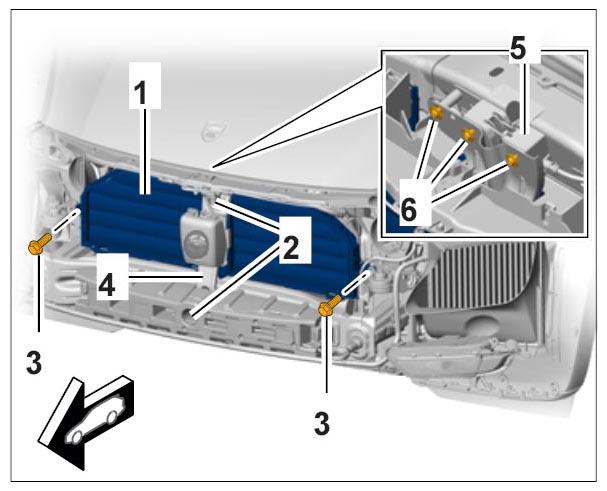

    Fig 1: Identifying Cooling-Air Flaps And Bracket
    G09932888Courtesy of PORSCHE CARS NORTH AMERICA, INC.
