Removing Cooling Fan Housing: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Electrically moved components

Danger of limbs being trapped or severed

→ Switch off electric power to drive motor.

→ Make sure it does not switch on again.

→ Check that there is no electric charge.

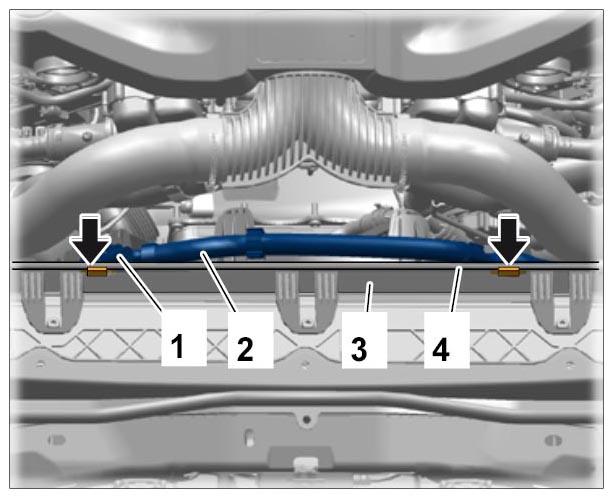

Unclip electric wire harness -2- from the brackets on the cooling fan housing -3- .
Release and disconnect electric plug connection -1- for fan at the cooling fan housing -3- .
Unscrew screws -arrows- and set the coolant pipe -4- with connected coolant hoses aside.

Fig 1: Locating Radiator Frame Wire Harness And Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

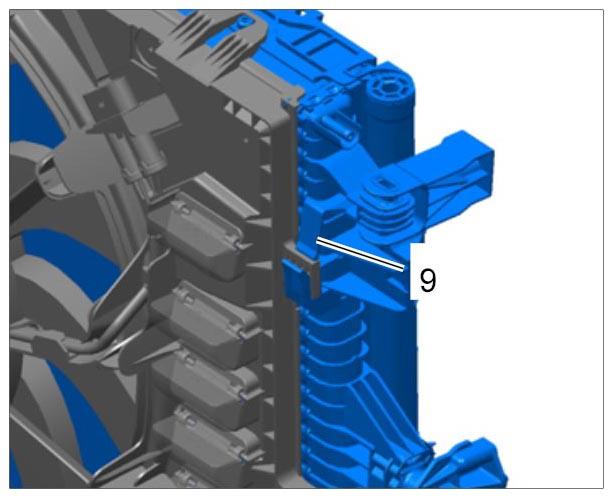

Release locking springs -9- at the left and right of the cooling fan housing.

Fig 2: Identifying Locking Springs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

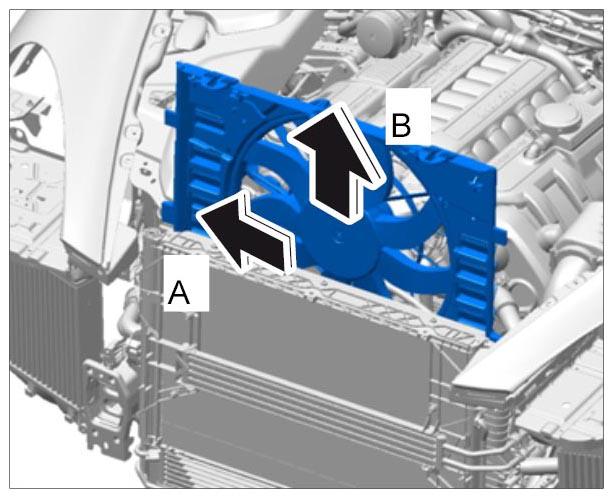

Pull cooling fan housing out of the brackets at the side and at the bottom and swivel it to the right slightly (in direction of travel) -arrow A- .

Fig 3: Pulling Cooling Fan Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully remove the cooling fan housing by pulling it up -arrow B- .
