Connection Diagram For Coolant Hoses

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

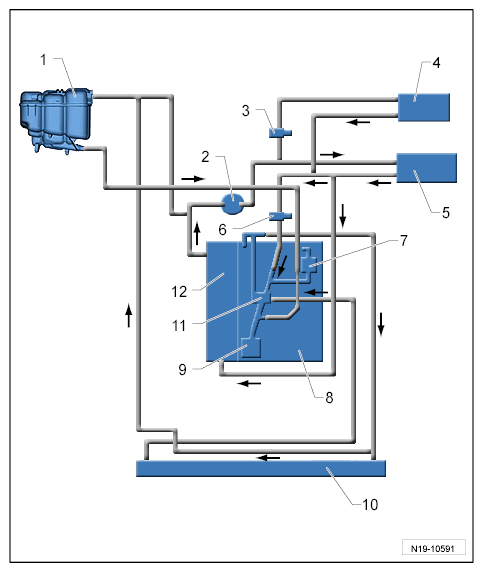

Fig 1: Coolant Hoses Connection Diagram
G09932865Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Coolant Reservoir
  2. Circulating Pump
  3. Shut-Off Valve For ATF Preheater
  4. ATF Preheater
  5. Heat Exchanger For Heater
  6. Shut-Off Valve For Heat Exchanger For Heater
  7. Engine Oil Cooler
  8. Cylinder Block
  9. Coolant Pump
  10. Radiator With ATF Cooler And Condenser
  11. Coolant Regulator
  12. Cylinder Head
