Assembly Overview Part 1 - Cooling System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

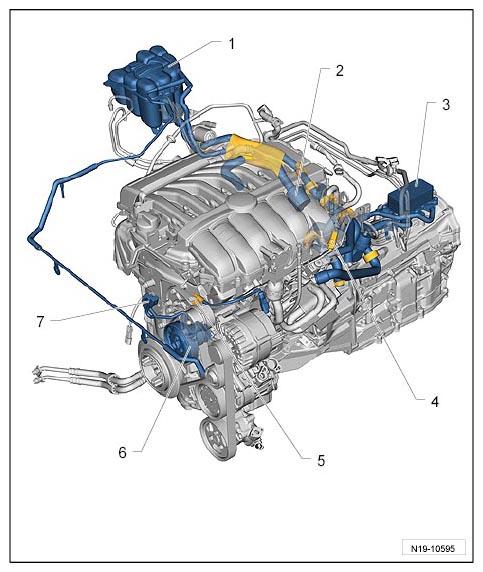

Fig 1: Overview Of Cooling System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant Reservoir
Circulating Pump
ATF Preheater
Coolant Temperature Sensor
Temperature Sensor For Engine Temperature Control
Coolant Pump
Coolant Control Valve

Replace O-rings and seals.

Pull the plug-in couplings to check that they are seated securely

Tightening Torques:

M6 screws: 10 Nm (7.5 ft. lb.)

M8 screws: 20 Nm (15 ft. lb.)
