Assembly Overview - Radiator And Radiator Fan

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

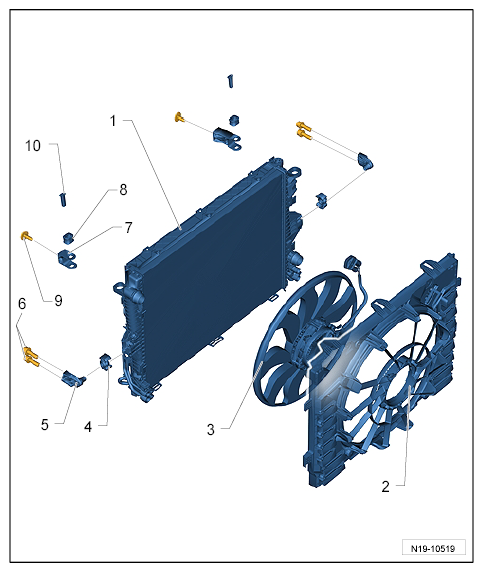

Fig 1: Overview Of Radiator And Radiator Fan
G09932869Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Radiator Module With Condenser And ATF Cooler
  2. Fan Frame
  3. Radiator Fan
  4. Rubber Mounting For Radiator Mounting
  5. Bottom Radiator Mounting
  6. Screws → Tightening Torque: 25 Nm (19 ft. lb.)
  7. Top Radiator Mounting
  8. Rubber Mounting For Radiator Mounting
  9. Screw → Tightening Torque: 5 Nm (3.5 ft. lb.)
  10. Locking Pin
