Tools And Materials

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

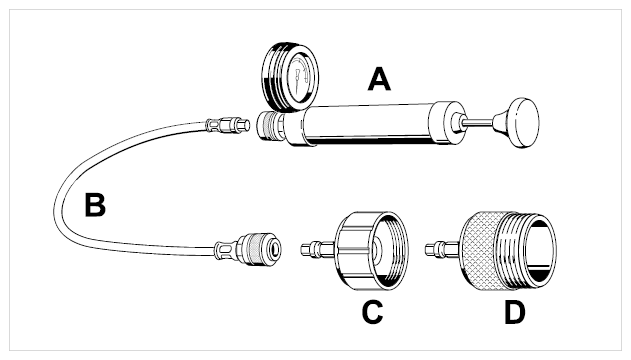

Fig 1: Identifying Cooling System Leak Tester
G09932831Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Cooling system leak tester (pump), see Cooling system tester WE 1069
  2. Hose Extension FZ 100
  3. K22 Cap Adapter (For Sports Cars)
  4. K60 cap adapter (included in scope of delivery Filling Device 9696  )

Antifreeze tester => Antifreeze And Battery Acid Tester FT 2030 WE 1037  or Antifreeze And Battery Acid Tester SUN-Duo-Check WE 1036
