Checking The Antifreeze Content Of The Coolant Using A Refractometer

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The following diagram shows the scale used by Leitenberger . Antifreeze and battery acid tester FT 2030 WE 1037
The scale can vary slightly, depending on the manufacturer .
The ETHYLENE scale must be used for Porsche antifreeze .
Other commercially available testers can also be used provided correct results are guaranteed .

Fig 1: Checking Coolant Antifreeze Content Using Refractometer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Item	Designation of the display	Explanation
-A-	Scale for propylene-based coolant	Do not use for engine type M48.
-B-	Scale for ethylene-based coolant	Coolant such as elf GLACELF SUPRA. Use for engine type M48.
-C-	Scale for battery acid	The charge state of a battery can be checked here. The values on the left side indicate the specific gravity of the electrolyte. The battery must be recharged once the charge drops below 1.20.
-D-	Scale for alcohol-based windscreen cleaner	The freezing point of the windscreen cleaner can be read off here.
-E-	Light/dark limit	In conjunction with the points of intersection of the relevant scales, it specifies the value to be established.
-F-	Waterline	The light/dark limit must be located here when sprinkled with distilled water.

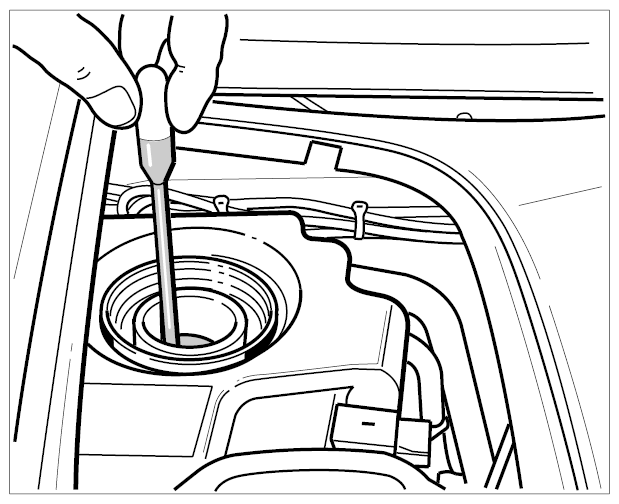

Using a pipette, take a sample from the coolant reservoir.

Fig 2: Checking Coolant Reservoir Sample
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

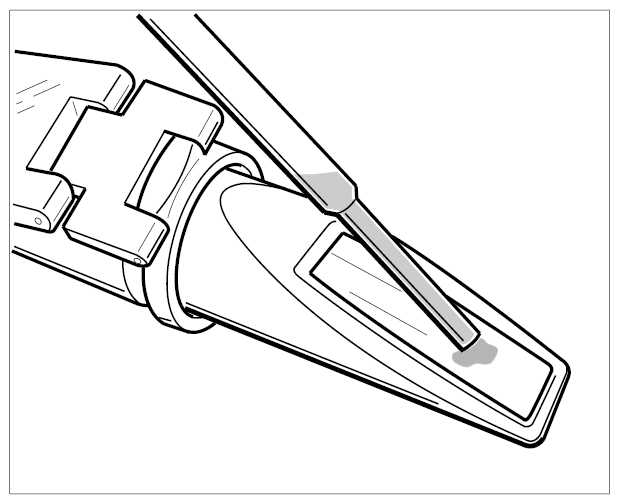

Deposit a few drops on the test surface.

Fig 3: Checking Test Surface Drops
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

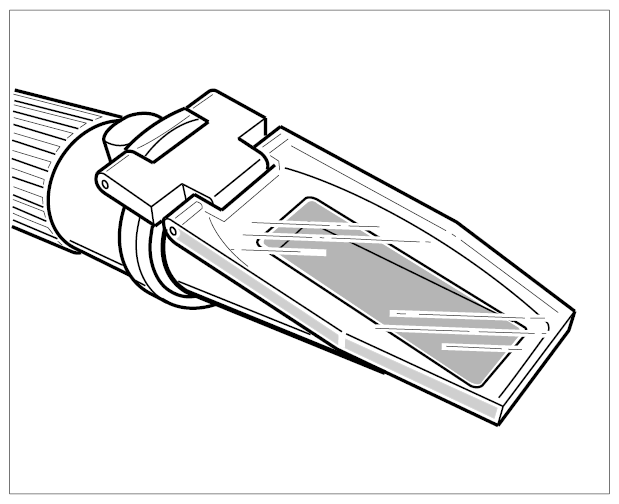

Close the light-diffusing lens. A closed film must form.

Fig 4: Identifying Light-Diffusing Lens
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Using the refractometer, view against a very bright light source. A very clear light/dark limit emerges. The point of intersection between this line and the display scale marks the freezing point of the coolant.

A freezing point that is too low must be adjusted accordingly.

Information

The following table specifies how much coolant must be replaced by pure antifreeze in order to adjust the freezing point to -37 °C .

Measured antifreeze protection in °C	Antifreeze quantity to be added (in liters)
- 5	9
- 10	8.5
- 15	7.5
- 20	7
- 25	5
- 30	3.5
- 35	1.5
