Removing And Installing Front Right Body Acceleration Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The front right body acceleration sensor is located on the right wheel housing in the engine compartment.

  1. Remove front trim panel (engine compartment) at the right → 700219 REMOVING AND INSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT) .
  2. Disconnect connector -1-  on the body acceleration sensor.
  3. Unscrew fastening screw -2-  .

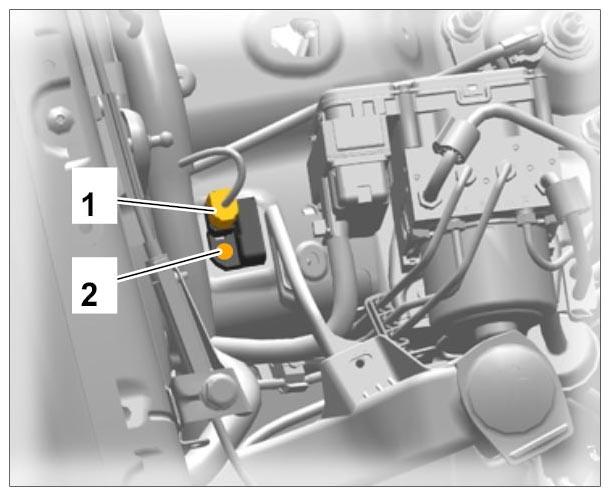

    Fig 1: Identifying Front Right Body Acceleration Sensor
    G09935775Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Installation is performed in reverse order.
