Component Arrangement
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

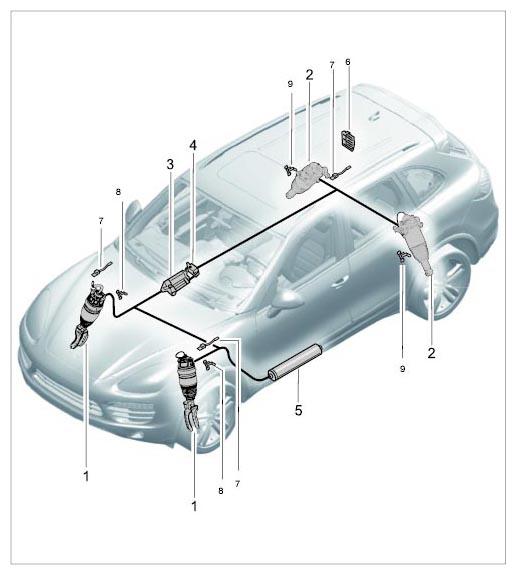

On the Cayenne, two front body acceleration sensors are installed on the wheel housings in the engine compartment and one rear body acceleration sensor is installed at the right. The rear body acceleration sensor (item 7) is integrated into the levelling system/PASM control unit (item 6).
