Seals, Sealing Rings And Safety Catch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Always replace sealing rings and bellows.

Always replace safety catch -1- and slide it on as far as the support ring -2- .

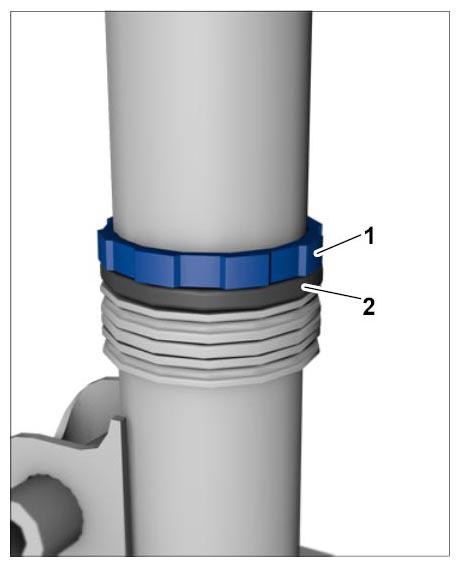

Fig 1: Identifying Safety Catch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

After removing gaskets, examine the contact surfaces on housings for burrs and damage.

Always loosen and tighten screws and nuts crosswise for mounting covers and housings.

Lightly grease sealing rings with Syntheso Glep 1 (Part No. 000.043.204.68).
