Component Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Air-Spring Strut, Complete - FA
G09935682Courtesy of PORSCHE CARS NORTH AMERICA, INC.

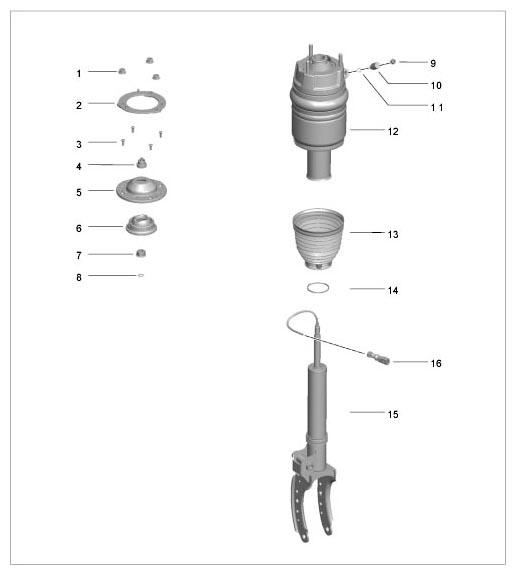

Fig 2: Exploded View Of Air-Spring Strut - FA
G09935683Courtesy of PORSCHE CARS NORTH AMERICA, INC.
No. Designation Note
1 Hexagon nut Please use new lock nuts.
2 Ring
3 Countersunk-head screw
4 Grommet
5 Cover
6 Shock absorber mounting
7 Hexagon nut Please use a new lock nut.
8 Ring, small (O-ring) Please use a new seal.
9 Push-on connector
10 Pressure control valve
11 Sealing ring Please use a new sealing ring.
12 Air spring
13 Boot/bellows Please use a new boot/bellows.
14 Ring, large (O-ring) Please use a new seal.
15 Shock absorber Safety catch Always replace safety catch (shown fitted on shock absorber!)
16 Connector with grommet

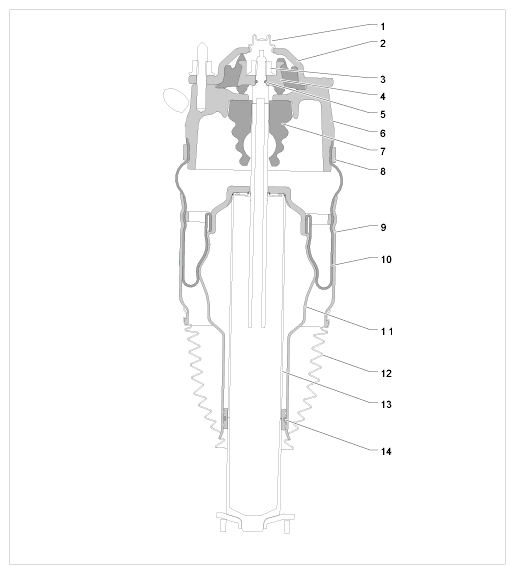

Fig 3: Cut-Out View Of Spring Strut
G09935684Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -1-  - Grommet
  2. -2-  - Cover
  3. -3-  - Hexagon nut
  4. -4-  - Shock absorber mounting
  5. -5-  - Ring, small (O-ring)
  6. -6-  - Air spring
  7. -7-  - Additional spring
  8. -8-  - Retainer
  9. -9-  - Outer guide
  10. -10-  - Air-spring bellows
  11. -11-  - Rolling piston
  12. -12-  - Boot/bellows
  13. -13-  - Shock absorber
  14. -14-  - Ring, large (O-ring)
