Subsequent Work For Removing And Installing Spring Strut (Air Springs) On Passenger's Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install torque support. → 103719 REMOVING AND INSTALLING TORQUE SUPPORT
  2. Clip in bleeder valve -1-  at the coolant reservoir.

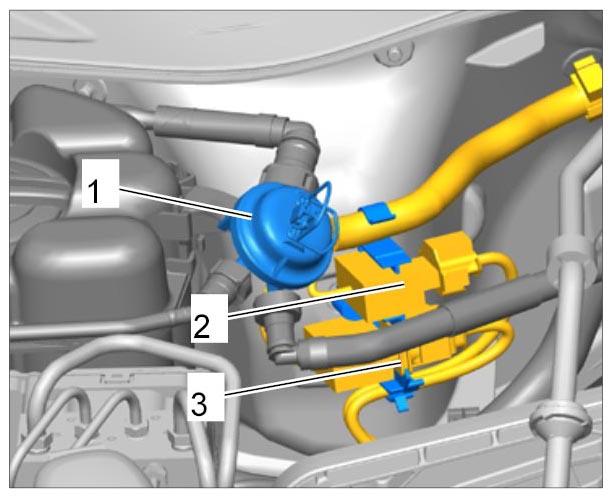

    Fig 1: Clipping In Wire Harness At Right Of Engine Compartment
    G09935733Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip plug connections -2, 3-  into the holders at the end plate.
