Preliminary Work For Removing And Installing Front Spring Strut (Air Springs) On Passenger's Side

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

For V8:
Remove torque support. → 103719 REMOVING AND INSTALLING TORQUE SUPPORT
Unclip bleeder valve -1- at the coolant reservoir.

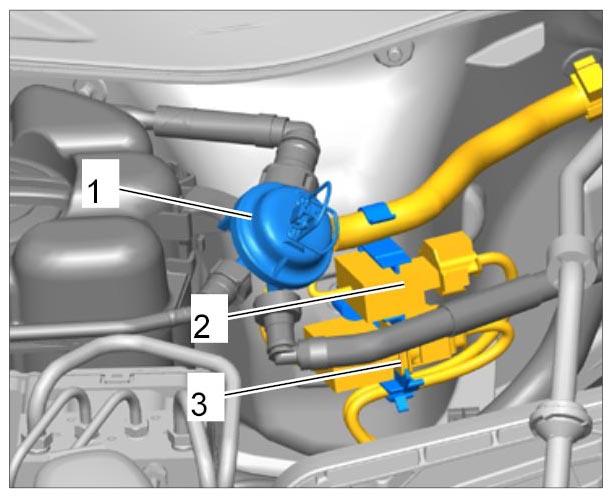

Fig 1: Unclipping Wire Harness At Right Of Engine Compartment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip plug connections -2, 3- from the holders at the cross panel.
