Removing Rear Spring Strut (Air Springs)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Working with compressed air

Risk of eye injuries
Risk of damaging and dirtying components

→ Wear protective goggles with side eye protection.

→ Protect the point at which the compressed air emerges with suitable material.

→ Place the point at which the compressed air emerges on suitable surfaces.

Information

Spring strut screws are tensioned. Use a suitable lift with rubber base .

Fig 1: Lifting Wheel Bearing Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Raise the wheel suspension slightly using a transmission jack (do not raise wheel suspension higher than normal vehicle position (vehicle resting on its wheels). This changes the angular position of the control arm and the spring strut can be removed by turning carefully.

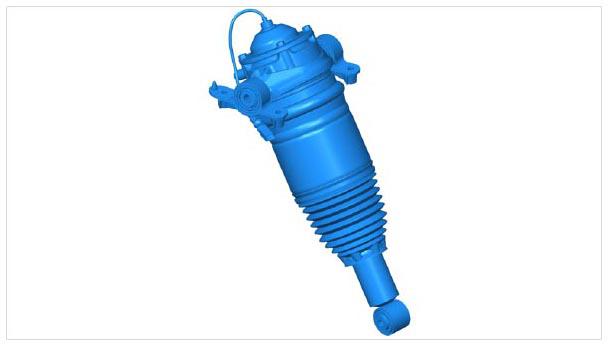

Fig 2: Identifying Rear Spring Strut (Air Springs)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

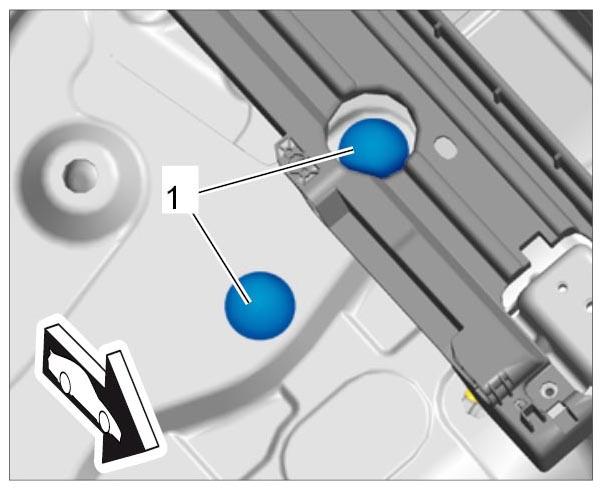

Remove caps -1- from the top screws on the spring strut at the front using a suitable tool.

Fig 3: Identifying Removing Caps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

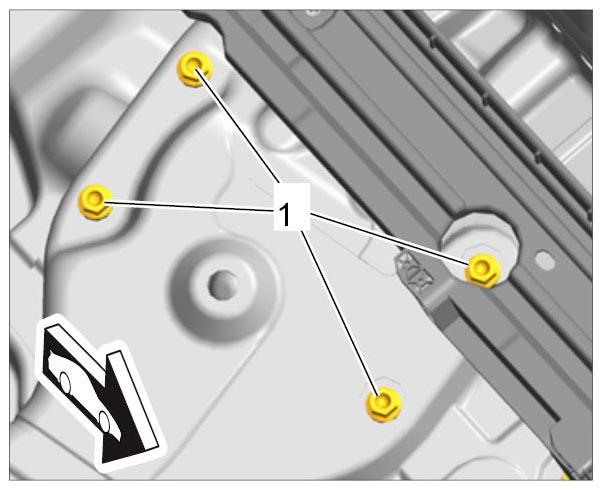

Loosen fastening screws -1- on the upper spring strut, but do not remove them.

Fig 4: Identifying Upper Spring-Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Raise the vehicle → 4X00IN LIFTING THE VEHICLE .

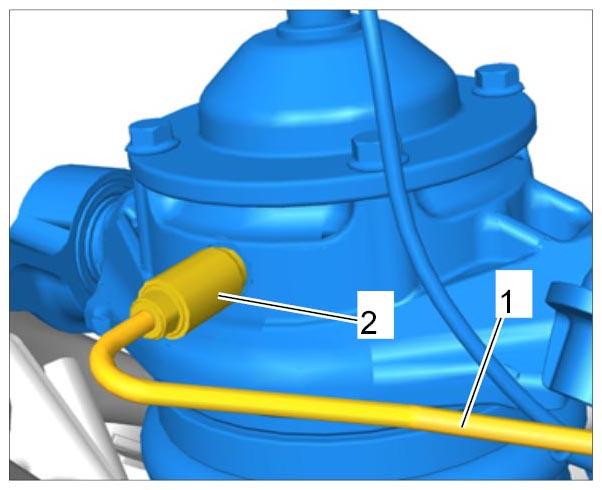

Loosen the pressure line -1- at the pressure control valve -2- using insert tool T10212 . Then move the pressure line aside and close it off using a suitable stopper.
Air can escape while doing this.

Fig 5: Pressure Line For Rear Spring Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

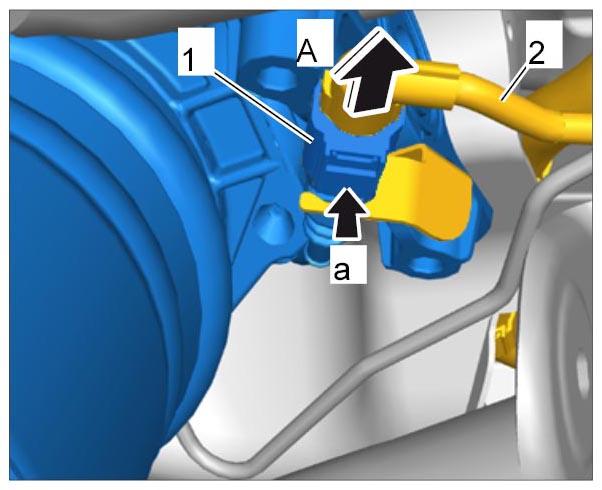

Release electric plug connection -1- from the spring-strut wire harness -2- (-a- ) and disconnect it -A- .

Fig 6: Removing Plug Connection For Rear Spring Strut (Air)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure the spring strut using a suitable jack → Lifting wheel bearing housing (example) .

Fig 7: Lifting Wheel Bearing Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

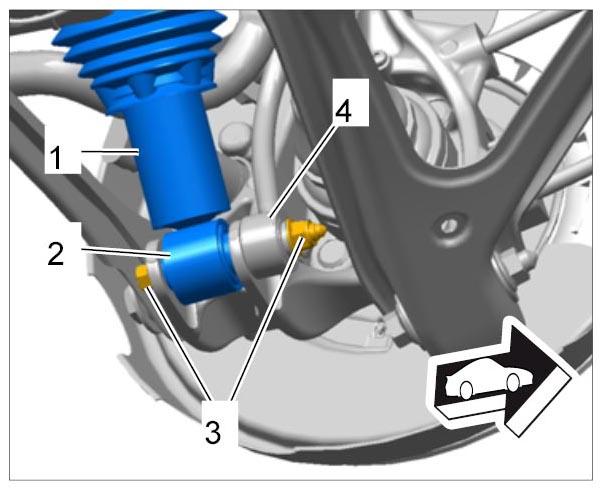

Remove the lower spring strut -1- from the wheel bearing housing -2- and connecting link -4- . To do this, loosen fastening screw -3- .

Fig 8: Identifying Spring Strut Screw (Air Springs)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the jack and carefully lever the spring strut -1- out of the wheel bearing housing -2- using a suitable tool, e.g. mounting lever.
Lower the vehicle.
A second mechanic is needed to hold and remove the spring strut .
The first mechanic unscrews the top fastening screws -1- on the spring strut completely.

The second mechanic holds the spring strut securely and then pulls it out of the vehicle.

Fig 9: Identifying Upper Spring-Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
