Replacing Rear Level Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle .
Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

Information

In running gear with level adjustment, a level sensor is installed on each spring strut .
The level sensor is screwed to the chassis subframe and front upper wishbone .
Make sure that the level sensor is fitted with the swivel range of the lever towards the outside of the vehicle .

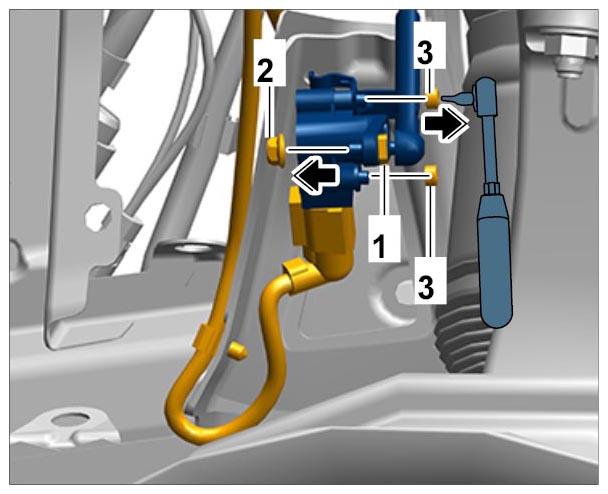

Counter with an open-ended wrench on the two flats -1- and unscrew fastening nut -2- .

Fig 1: Removing Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the two fastening screws -3- .

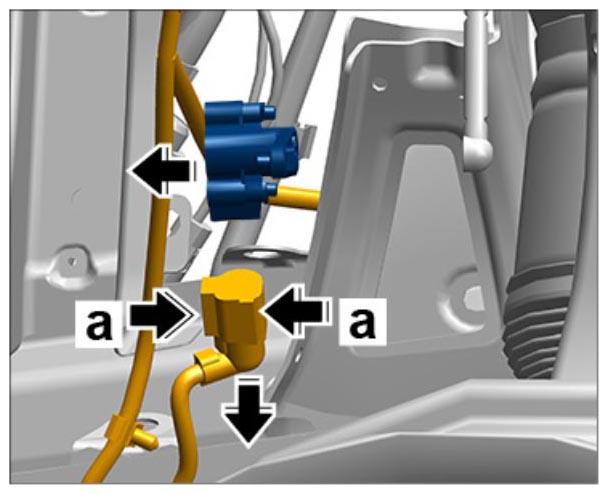

Release electric connector -a- and disconnect it -arrow- .

Fig 2: Locating Plug Connection For Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
