Installing Rear Level Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Plug in electric connector -bottom arrow- on the level sensor -top arrow- until the connector engages securely.

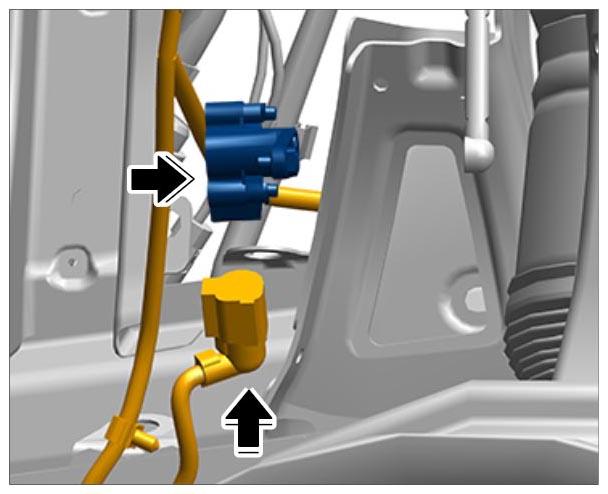

Fig 1: Locating Plug Connection For Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- In running gear with level adjustment, a level sensor is installed on each spring strut .
- The level sensor is screwed to the chassis subframe and front upper wishbone .
- Make sure that the level sensor is fitted with the swivel range of the lever towards the outside of the vehicle .
Tighten fastening screws -3- (Tightening torque 5 Nm (3.5 ftlb.)).

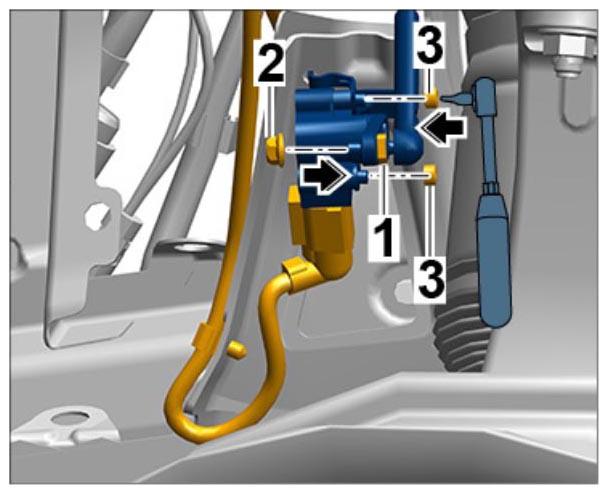

Fig 2: Installing Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage level sensor lever and position the level sensor.
Fit fastening nut -2- , counter with an open-ended wrench on the two flats -1- and tighten the nut Tightening torque 8 Nm (6 ftlb.).
If a new level sensor is installed, then the levelling system control unit must be calibrated.
