Removing Levelling System Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

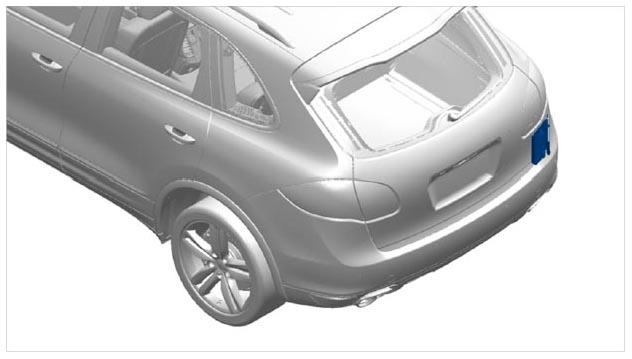

Fig 1: Identifying Installation Position Of Leveling System Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always comply with the regulations for handling ESD-sensitive components!

Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
Never touch the electric pins and plug contacts .

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Unscrew three fastening nuts -1- and remove control unit.

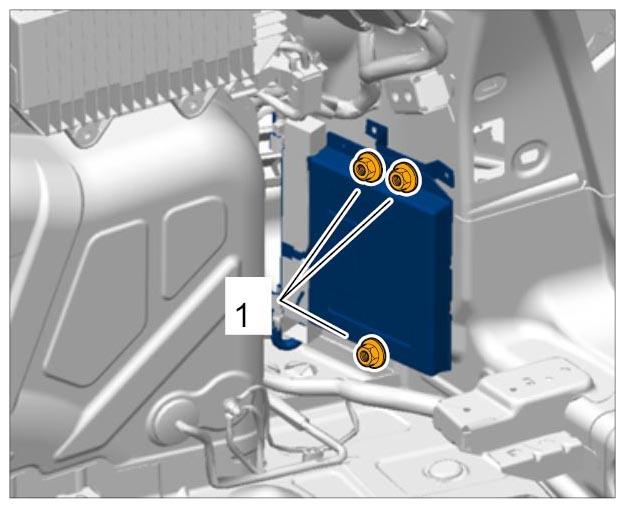

Fig 2: Identifying Control Unit Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection -1- (-a- ) and disconnect it -B- .

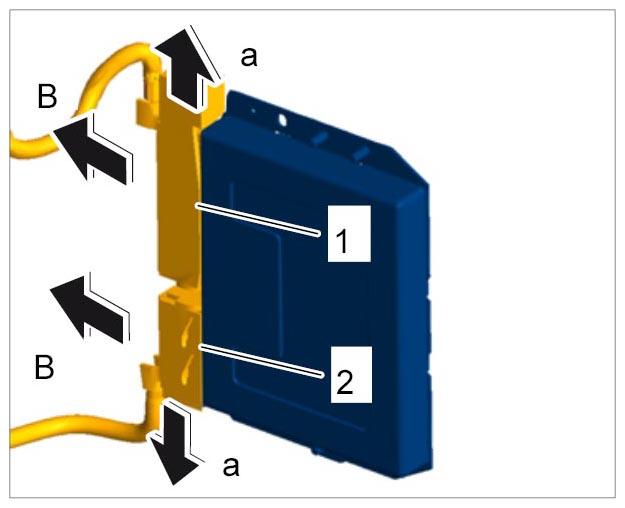

Fig 3: Disconnecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release electric plug connection -2- (-a- ) and disconnect it -B- .
