Removing Compressor For Levelling System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Escaping residual air

Risk of eye injuries

→ Wear protective goggles.

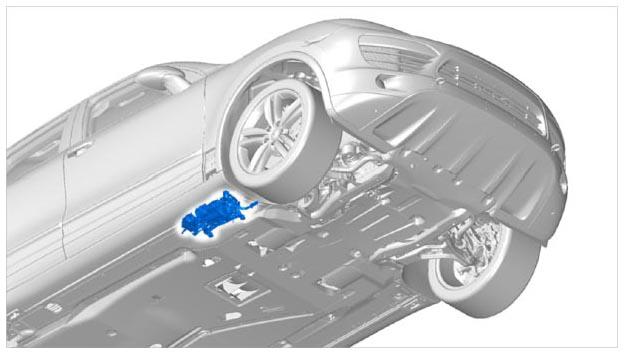

Fig 1: Identifying Installation Position Of Compressor For Leveling System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release electric plug connections -1- (-a- ) and pull them off -A- .

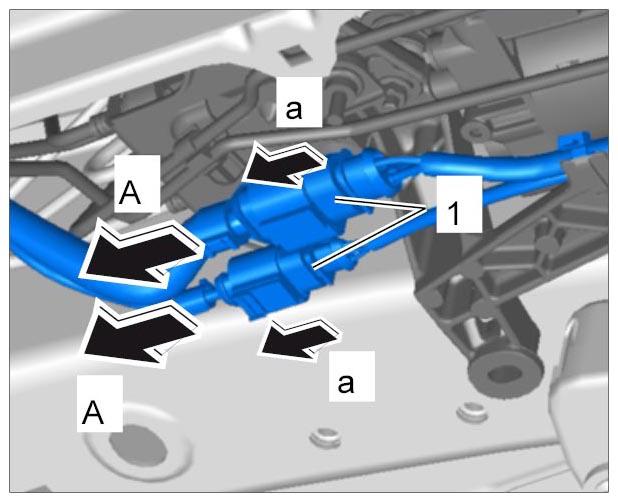

Fig 2: Disconnecting Connectors On Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove front hoses at the compressor.

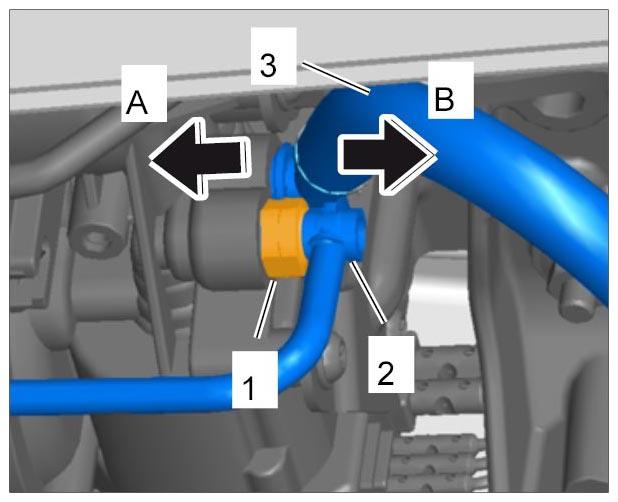

Fig 3: Removing Front Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Use insert part T10212 to screw off the union nut -1- .
2. 2.2. Pull off pressure hose -2- .
3. 2.3. Release sleeve on the suction hose -3- using a screwdriver -A- .
4. 2.4. Pull off suction hose -3- (-B- ).
Remove five pressure hoses -2- at the valve block. The blue pressure hose at the top left can remain in place.

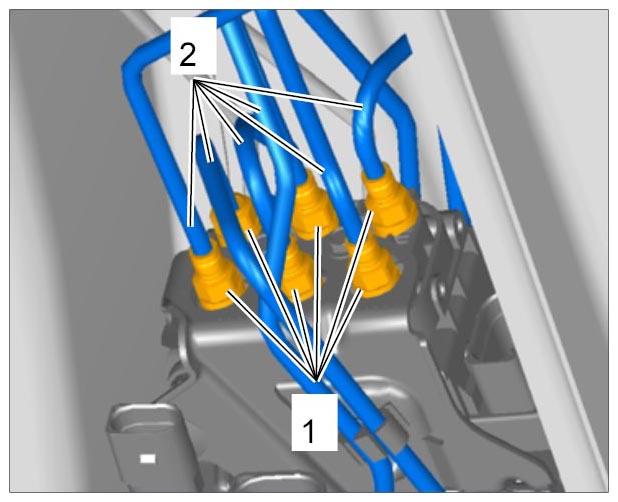

Fig 4: Identifying Pressure Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Use insert part T10212 to screw off the union nuts -1- .
2. 3.2. Pull off pressure hoses -2- .
Unscrew fastening screws -1- .

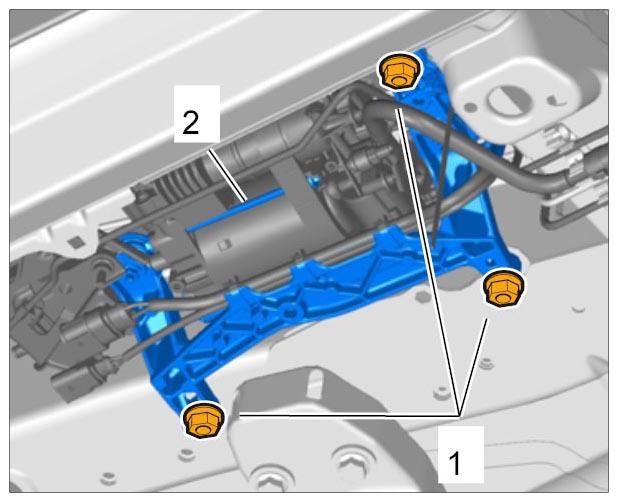

Fig 5: Identifying Compressor Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove compressor -2- in a downward direction.
