Removing PDCC Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The PDCC control unit is located under the right rear seat.

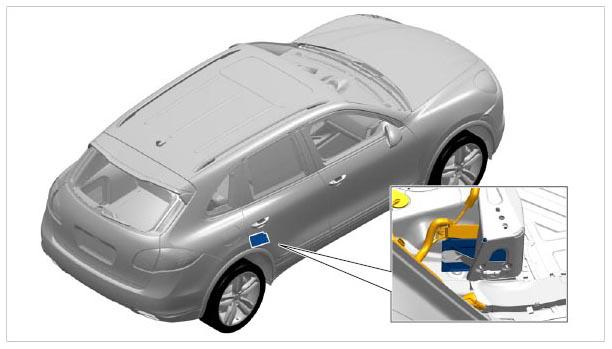

Fig 1: Identifying Installation Position Of PDCC Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.
Cut the carpeted floor in area -1- using a carpet knife and fold it to one side.

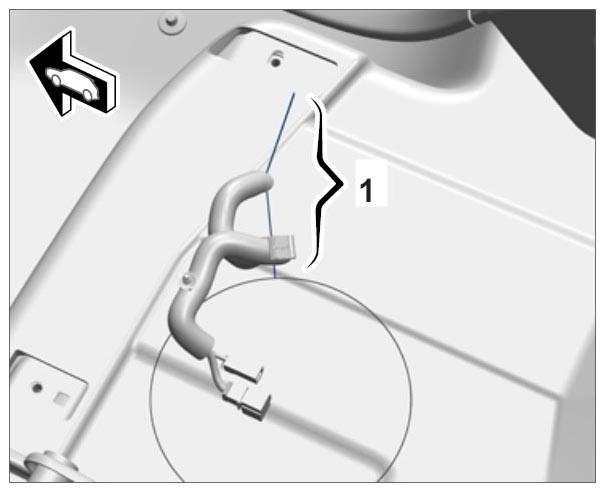

Fig 2: Identifying Cutting Carpeted Floor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect connector -1- from the PDCC control unit.
1. 3.1. Release connector -2- .
2. 3.2. Pull connector to one side -arrow- .

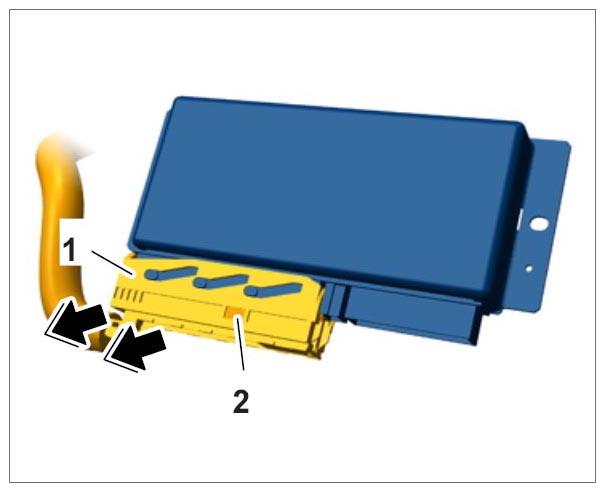

  Fig 3: Disconnecting Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening nuts -1- on the PDCC control unit.

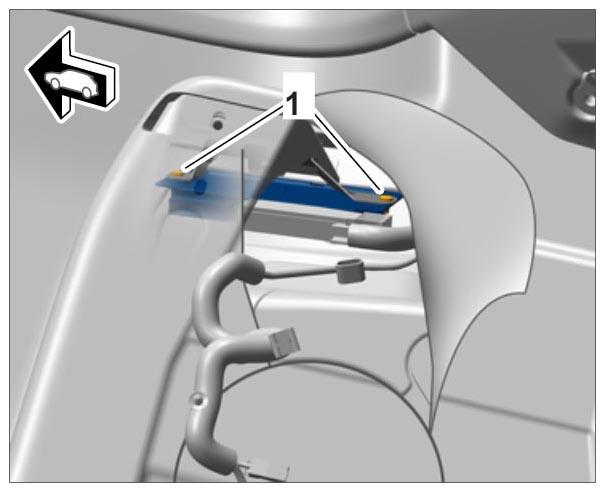

Fig 4: Identifying Mounting For Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove PDCC control unit.
