Installing PDCC Control Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Move PDCC control unit into installation position.

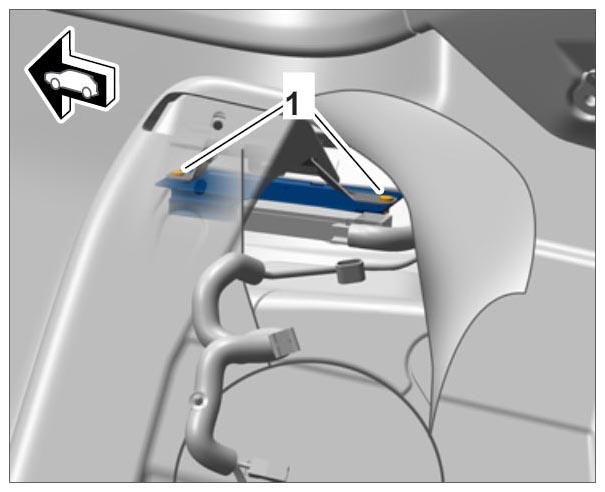

Screw in and tighten two fastening nuts -1- on the PDCC control unit.

Fig 1: Identifying Mounting For Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

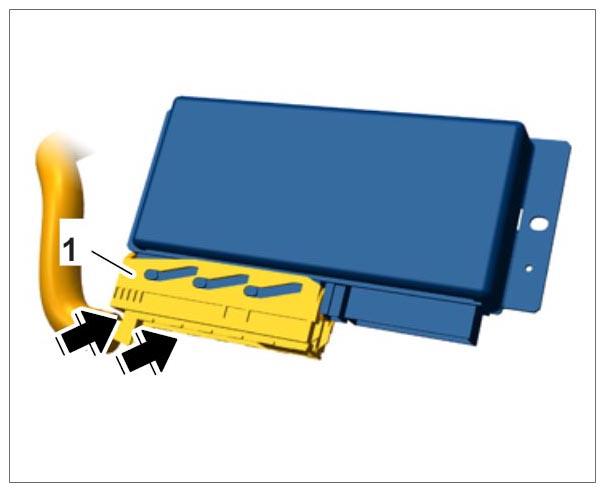

Plug in connector -1- on the PDCC control unit and lock it -arrow- .

Fig 2: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

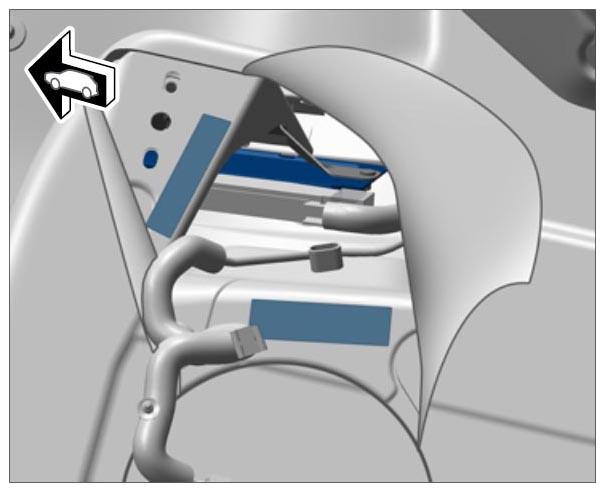

Secure the carpeted floor.
1. 4.1. Affix double-sided adhesive tape in the -marked area- and pull protective film off the adhesive tape.
2. 4.2. Fold carpeted floor over and press down firmly.

  Fig 3: Securing Carpeted Floor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
