WM 4301IN Filling Specification For Air-Spring Strut (Cayenne, Cayenne GTS, Cayenne Turbo S, Cayenne S, Cayenne S E-Hybrid, Cayenne Turbo, Cayenne S Diesel, Cayenne (3.0)): Information: Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The graphics in this document may differ from the original, but this does not affect their validity and relevance.

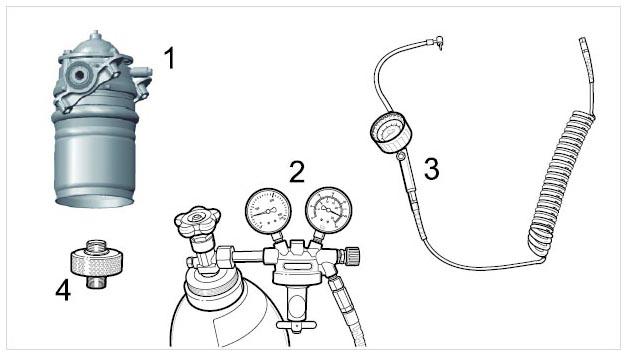

Fig 1: Identifying Filling Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-1- - Upper part of air-spring strut with pressure control valve. The adapter T10157/1 is fitted to the pressure control valve before filling the air-spring strut.
-2- - Compressed gas bottle with pressure gauge unit 00000 (pressure gauge unit with at least 17 bar adjustable pressure. The required pressure is set on the compressed gas bottle using the pressure gauge unit. The compressed gas bottle is filled with nitrogen.)
-3- - Air-spring filling unit VAS 6231 00000 (The air-spring strut can be filled with three to four short, individual pressure shots using the air-spring filling unit.)
-4- - Adapter T10157/1 (The adapter T10157/1 is fitted to the pressure control valve before filling the air-spring strut.)
