Installing Vacuum Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

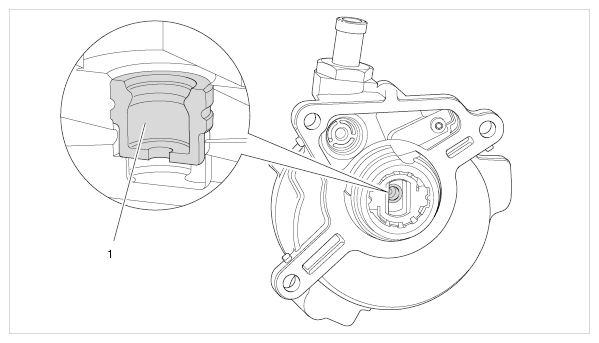

Fit the sealing ring -1- at the correct position in the vacuum pump so that it is flush with the lower edge of the chamfer in the rotor.

Fig 1: Identifying Vacuum Pump Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

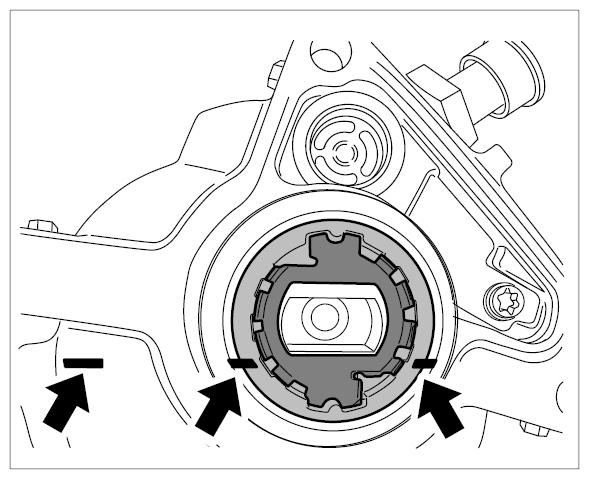

Align the rotor according to the marking you made -arrows- . → Rotor position marked

Fig 2: Locating Rotor Position Marked
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Once you have inserted the vacuum pump, it must not be pulled back any more. Otherwise, you will have to check the sealing ring again to ensure that it is seated correctly.

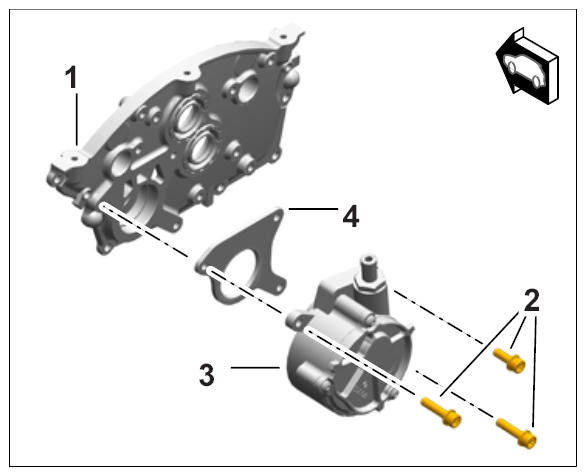

Insert the vacuum pump -3- with the seal -4- evenly into the fitting bores of the cover piece -1- .
Information

Check the position of the screws and the screw length when removing and installing the vacuum pump. The screw at the top right in direction of travel is short, the other two screws are long.
Fit the vacuum pump -3- using three screws -2- . Use the wooden block again if necessary when tightening the lower screw.
Fastening screws securing vacuum pump to plenum panel wall: Tightening torque 10 Nm (7.5 ftlb.) +/-1 Nm (+/- 0.5 ftlb.) .

Fig 3: Identifying Vacuum Pump Components
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit the vacuum line and check that the vacuum line is seated correctly.

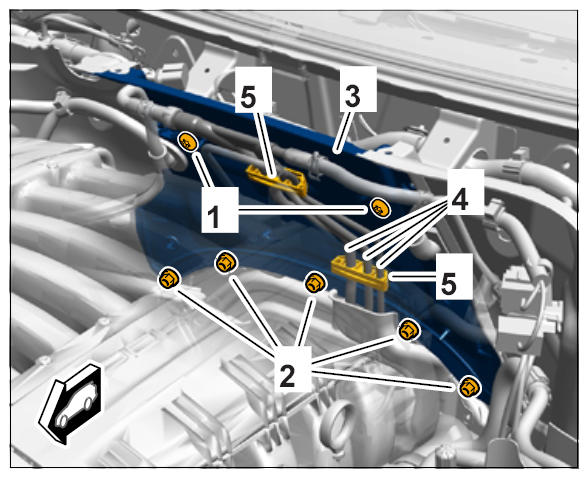

Fit center cross panel -3- .
1. 6.1. Insert cross panel in installation position.
2. 6.2. Fit fastening screws -1- and nuts -2- .
3. 6.3. Clip lines -4- into the brackets -5- .

  Fig 4: Identifying Centre Cross Panel Components
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
