Preliminary Work

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear profile seal for front lid. → 553319 REMOVING AND INSTALLING SEAL FOR FRONT LID
  2. Remove both wiper arms. → 922519 REMOVING AND INSTALLING WIPER ARM
  3. Remove cowl panel cover. → 664419 REMOVING AND INSTALLING COWL PANEL COVER
  4. Remove wiper linkage. To do this, complete Steps 1-4 in → 921519 REMOVING AND INSTALLING WIPER MOTOR .
  5. Remove front cover (engine compartment). → 700219 REMOVING AND INSTALLING FRONT COVER (ENGINE COMPARTMENT)
  6. Remove left and right cross panel. → 508119 REMOVING AND INSTALLING CROSS PANEL
  7. Raise the vehicle. → 4X00IN LIFTING THE VEHICLE
  8. Remove engine guard by loosening the screws -arrows-  under the transmission.

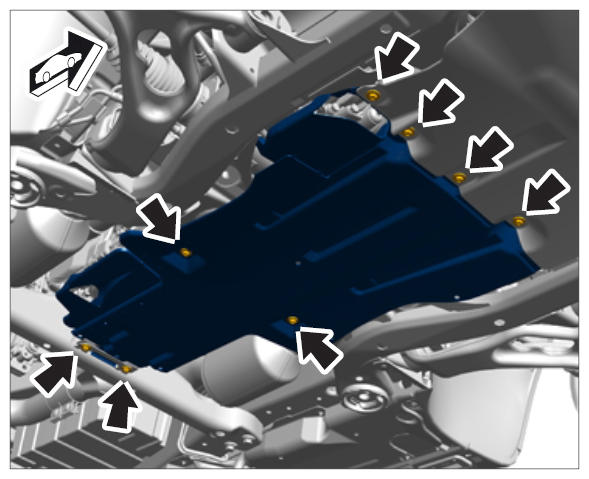

    Fig 1: Locating Engine Guard Screws
    G09937583Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Remove protective plate.
    1. 9.1. Remove nuts -2-  from the protective plate -1-  .
    2. 9.2. Lower the vehicle.
    3. 9.3. Remove screw -3-  from the protective plate.
    4. 9.4. Remove protective plate.

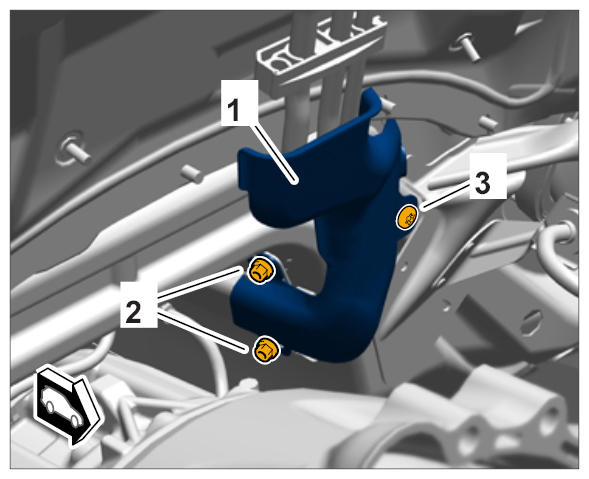

      Fig 2: Identifying Protective Plate With Mounting Screws
      G09937584Courtesy of PORSCHE CARS NORTH AMERICA, INC.
