Removing Vacuum Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pictures shown in this document may differ from the original.

Fig 1: Identifying Installation Position Of Vacuum Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

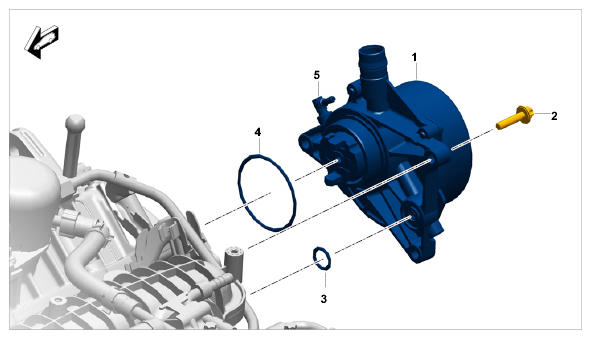

Fig 2: Identifying Vacuum Pump With Connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum pump
Screw, M6 x 25
Sealing ring
Sealing ring
Secondary load connection

Loosen the clamp -1- on the vacuum line -2- and pull off the vacuum pump -3- .

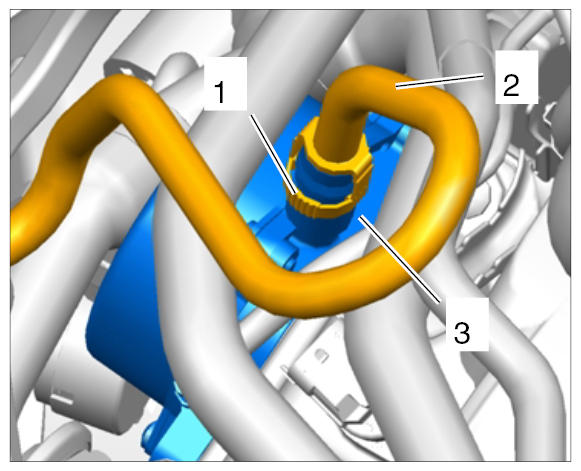

Fig 3: Identifying Clamp On Vacuum Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect vacuum line -1- from the vacuum pump -2- .

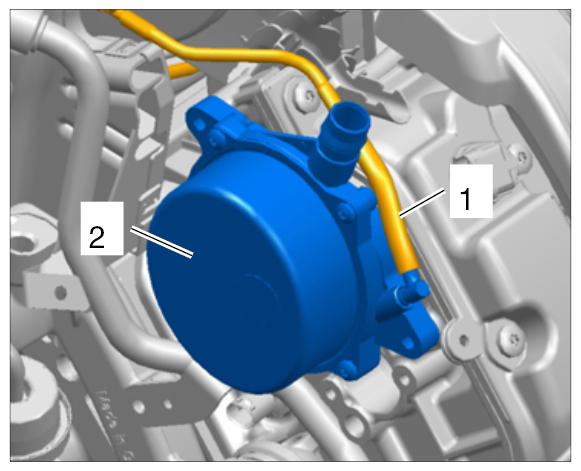

Fig 4: Identifying Vacuum Line From Vacuum Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove vacuum pump -1- .
1. 3.1. Unscrew screws -2- .

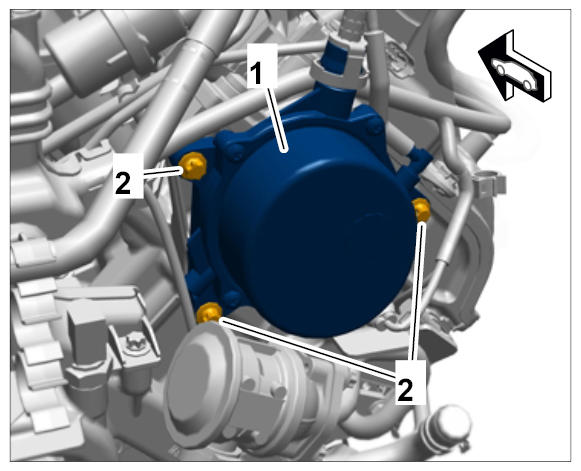

  Fig 5: Identifying Vacuum Pump Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Turn vacuum pump to the side -1- and remove it.
