Installing Vacuum Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

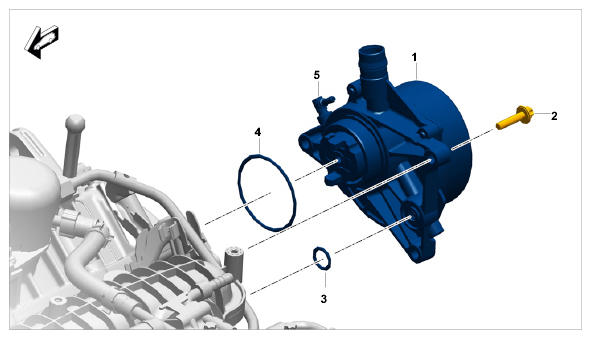

Fig 1: Identifying Vacuum Pump With Connections
G09937577Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Vacuum pump
  2. Screw, M6 x 25
  3. Sealing ring
  4. Sealing ring
  5. Secondary load connection
  1. Carefully loosen and lever off sealing rings -3, 4-  using a suitable tool.
  2. Clean contact surfaces of sealing rings -3, 4-  and fit new sealing rings -3, 4-  .
  3. Install vacuum pump.
    1. 3.1. Clean mounting point before installation.
    2. 3.2. Install vacuum pump -1-  .

      Align driver for vacuum pump -1-  and position vacuum pump -1-  .

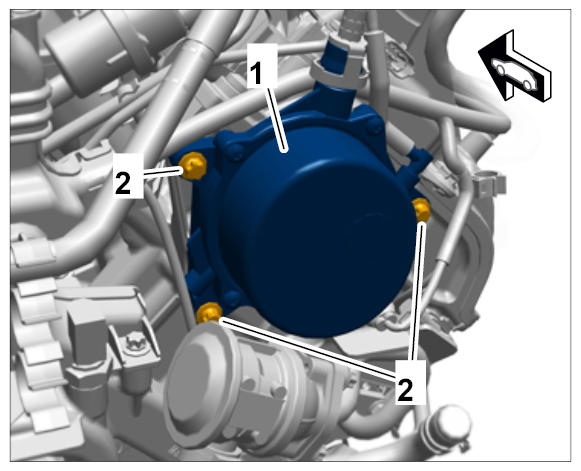

      Fig 2: Identifying Vacuum Pump Mounting Screws
      G09937578Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 3.3. Tighten screws -2-  . Tightening torque 10 Nm (7.5 ftlb.) +/-1 Nm (+/-0.5 ftlb.)
  4. Connect vacuum line -2-  to the vacuum pump -3-  and lock the clamp -1-  .

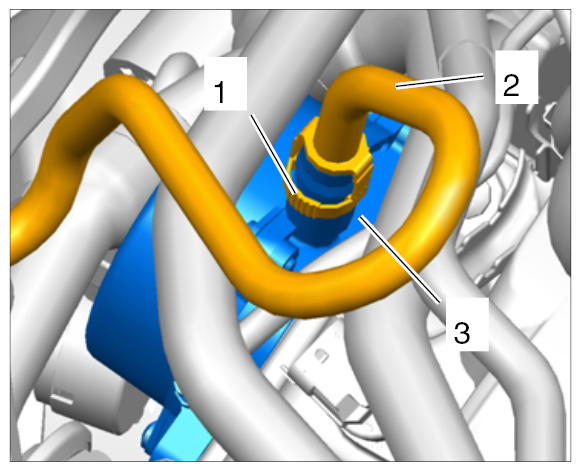

    Fig 3: Identifying Vacuum Line To Vacuum Pump
    G09937579Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Connect vacuum line -1-  to the vacuum pump -2-  .

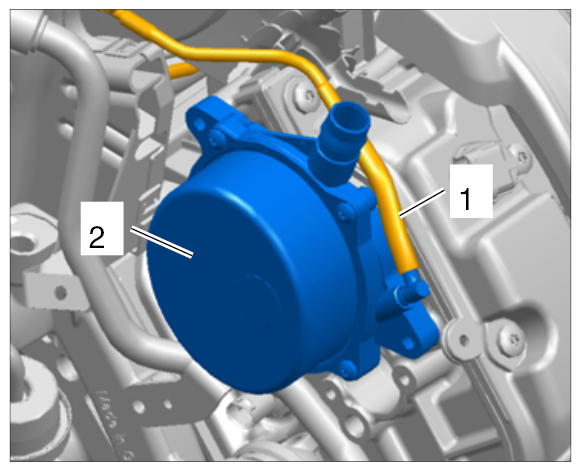

    Fig 4: Identifying Vacuum Line On Vacuum Pump
    G09937580Courtesy of PORSCHE CARS NORTH AMERICA, INC.
