Removing Vacuum Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pictures shown in this document may differ from the original.

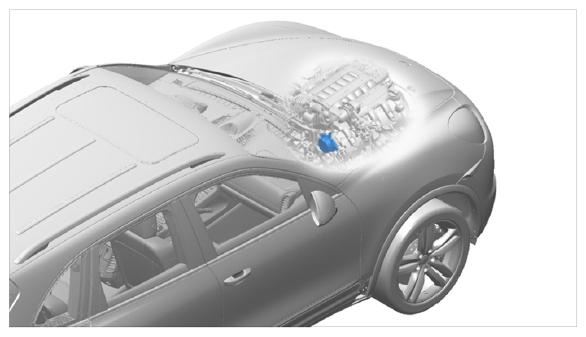

Fig 1: Identifying Installation Position Of Vacuum Pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

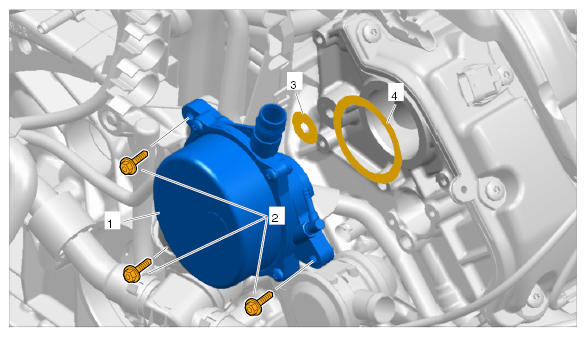

Fig 2: Identifying Vacuum Pump, Fastening Screws, Sealing Ring, Sealing Ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum pump
Fastening screws
Sealing ring
Sealing ring

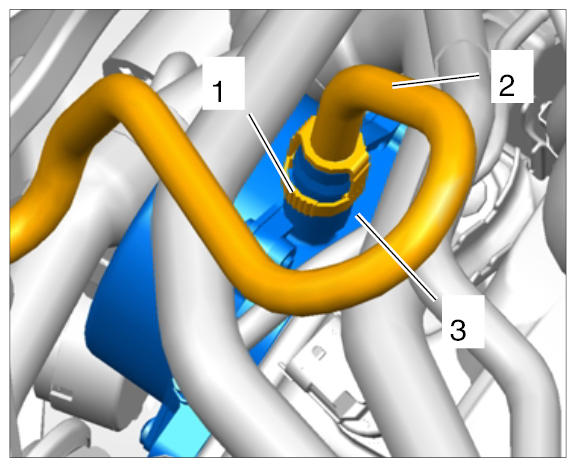

Loosen clamp -1- on vacuum line -2- for brake booster at the vacuum pump -3- .
Pull off vacuum line.

Fig 3: Identifying Vacuum Pump Line Clamp
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

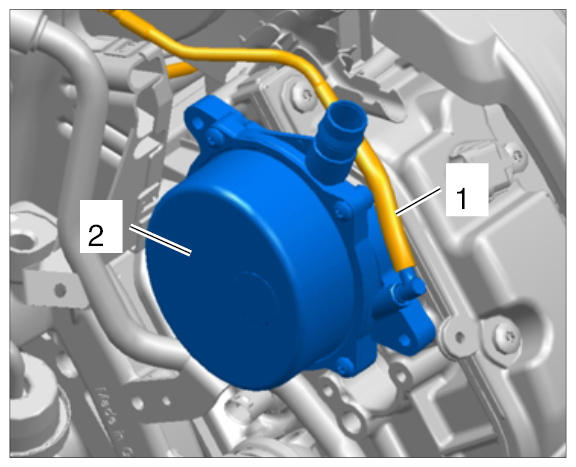

Pull vacuum line -1- off the vacuum pump -2- for automatic transmission.

Fig 4: Identifying Vacuum Supply Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove vacuum pump.
1. 3.1. Detach and remove the vacuum pump -1- .

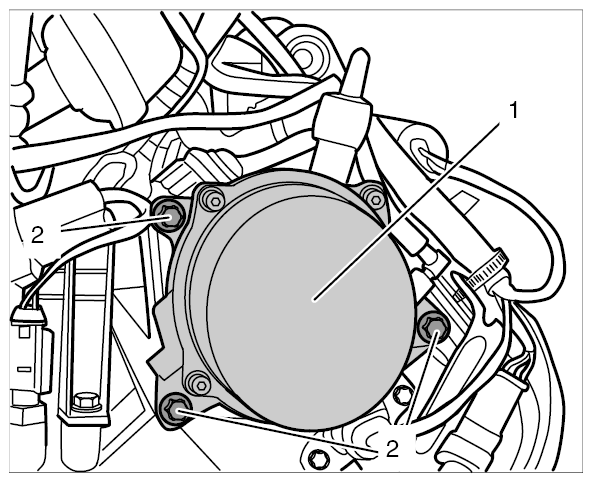

  Remove the vacuum pump -1- by unscrewing the screws -2- . Turn the vacuum pump to the side and guide it past the fuel low-pressure line.

  Fig 5: Identifying Vacuum Pump (Mechanical)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
