Removing Rear Brake Calliper

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removing/fitting wheels

Risk of damage to (ceramic) brake discs

→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

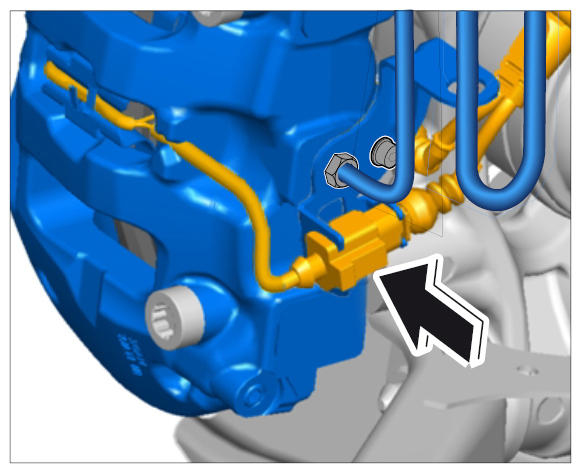

Fig 1: Locating Brake Calliper Connector

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release and unclip connector for the brake pad wear indicator and remove it from the holder -arrow- .

Fig 2: Removing Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Removal of brake calliper
- Paint defects on brake calliper
→ Proceed with care when setting back the brake pads.

→ Protect brake calliper from paint defects using a suitable cloth.
Evenly set back brake pads a little using water pump pliers.

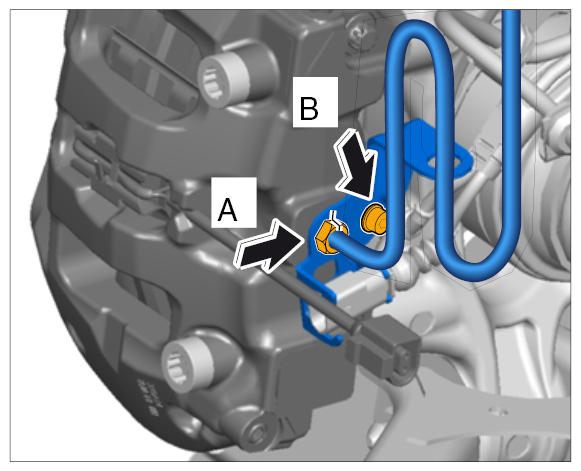

Loosen fastening screw -B- on the holder for the brake pad wear indicator cable and brake line from the brake calliper.
Disconnect brake line -A- at the brake calliper and collect brake fluid in a suitable container.

Fig 3: Locating Brake Line Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close off the brake line and bore on the brake calliper using a suitable stopper.
Information
- Never use an impact bolter to loosen and tighten the brake calliper on the wheel bearing housing.

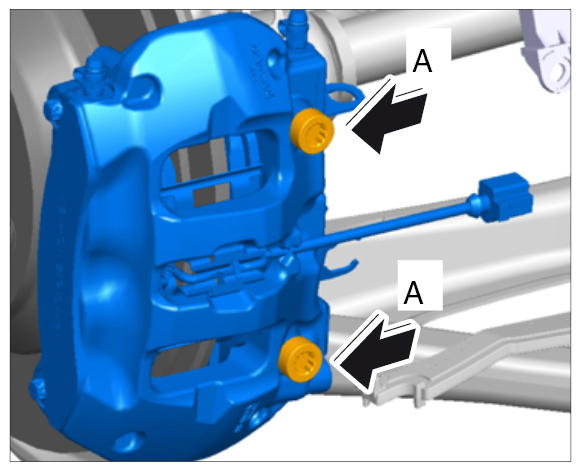

Remove brake calliper from the wheel carrier -A- .

Fig 4: Removing Brake Calliper From Wheel Carrier
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
