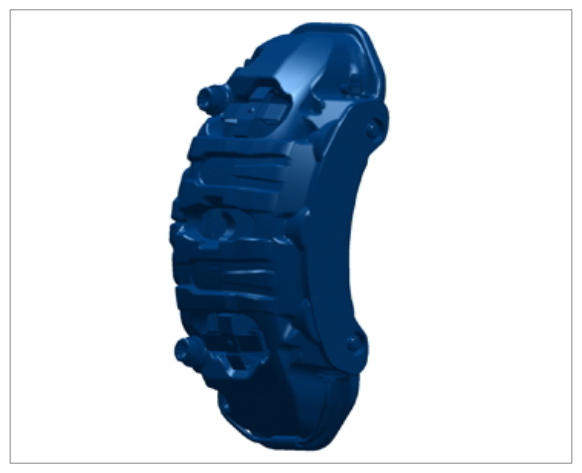

Removing Front Brake Calliper
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removing/fitting wheels
- Risk of damage to (ceramic) brake discs
→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.
Information
- To gain better access for removal of the brake calliper, turn the steering fully either to the right or left.

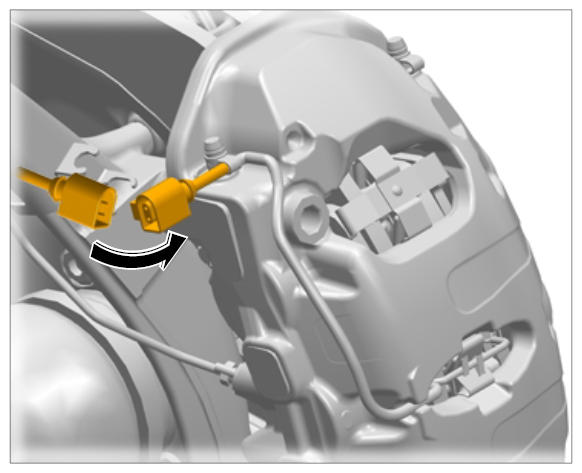

- Release and unclip connector for the brake pad wear indicator -arrow- .
- Disconnect plug connection for speed sensor.NOTE: Removal of brake calliper
- Paint defects on brake calliper
→ Proceed with care when setting back the brake pads.
→ Protect brake calliper from paint defects using a suitable cloth.
- Evenly set back brake pads a little using water pump pliers.
Information
Do not bend the brake lines.
- Detach brake line holders at the wheel carrier.
- For easier access to the holders, turn in the wheel carrier as required.

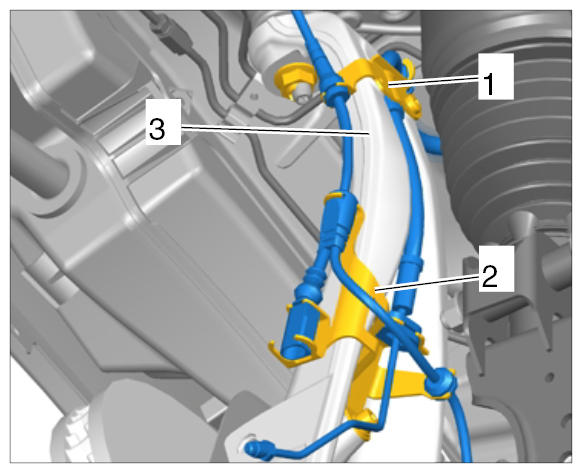

- Remove holders -1, 2- for the hydraulic lines on the wheel bearing housing -3- .
- Loosen brake line on the brake calliper. Collect the brake fluid in a suitable container. Close off the openings of the brake line and brake calliper using suitable stoppers.
Information
- Never use an impact bolter to loosen and tighten the brake calliper on the wheel carrier.

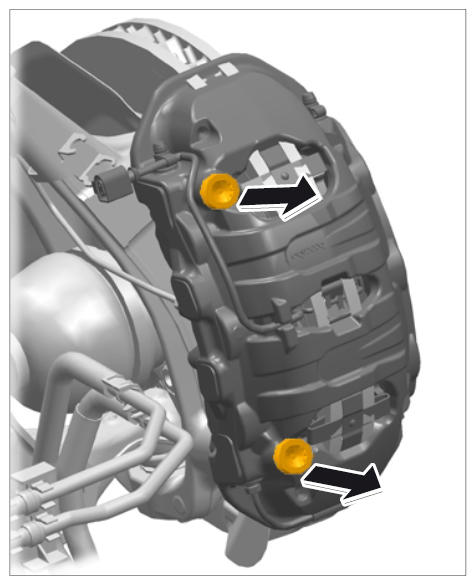

- Carefully remove brake calliper from the wheel carrier -arrows- .
- If new brake pads are fitted, read the information under "Removing and installing disc brake pads" → 463456 REPLACING FRONT BRAKE PADS (PCCB)
