Replacing Brake Master Cylinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the brake master cylinder is to be replaced, first remove the brake fluid reservoir and then unscrew the fastening nuts for the brake master cylinder.

Information

When replacing the brake master cylinder or the brake fluid reservoir, the latter is not repositioned until the brake master cylinder has been installed.

Remove brake light switch. → 943619 REMOVING AND INSTALLING BRAKE LIGHT SWITCH
Unscrew fastening screw -1- for the brake fluid reservoir -2- on the brake master cylinder -3- .

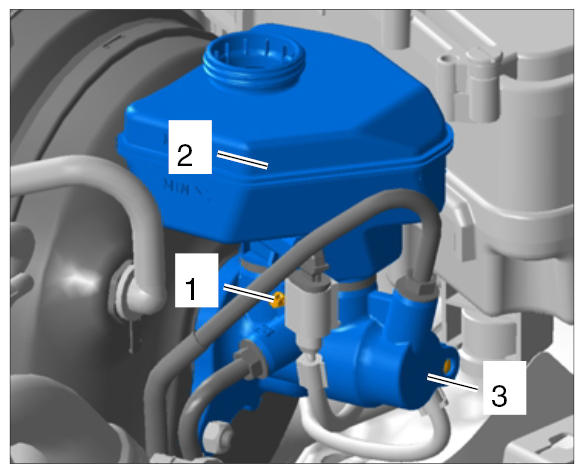

Fig 1: Identifying, Brake Master Cylinder And Break Fluid Reservoir Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lever out the brake fluid reservoir -1- using a suitable tool -2- and remove it from the brake master cylinder -3- .

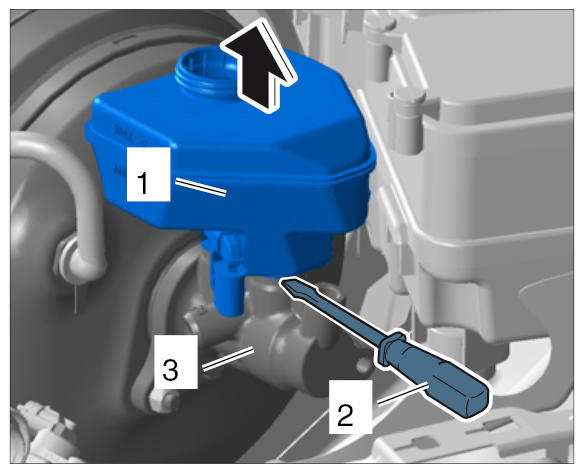

Fig 2: Removing Brake Fluid Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rubber seals -1- from the brake master cylinder -2- and replace them.

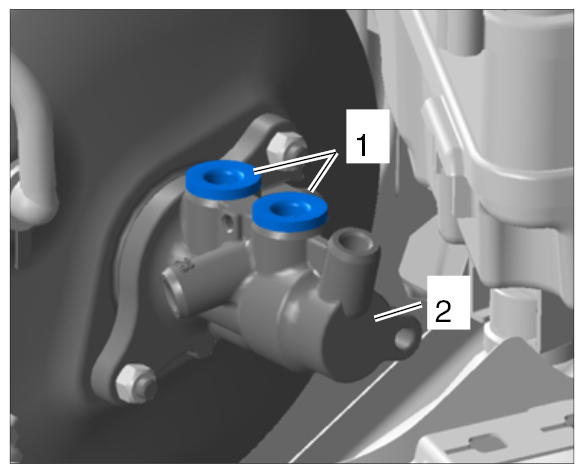

Fig 3: Identifying Rubber Seals On Brake Master Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
