Installing Brake Master Cylinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

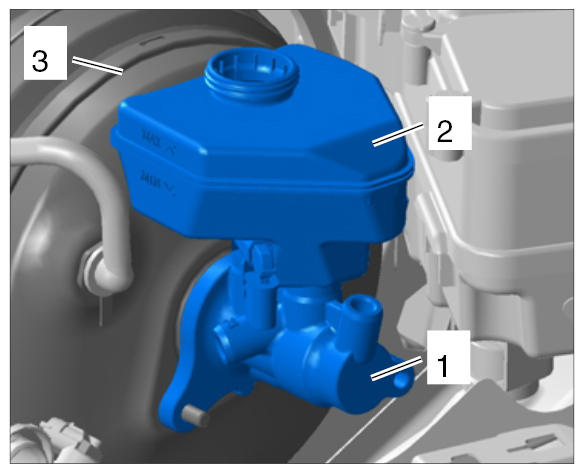

Carefully insert the brake master cylinder -1- together with the brake fluid reservoir -2- into the brake booster -3- .

Fig 1: Identifying Brake Master Cylinder, Brake Fluid Reservoir And Brake Booster
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

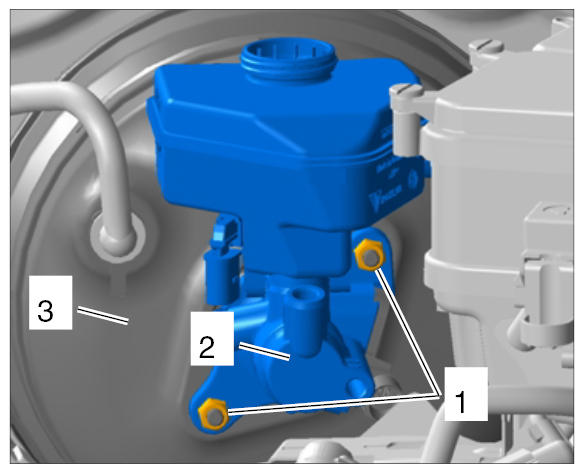

Fit fastening nuts -1- for the brake master cylinder -2- at the brake booster -3- . Tightening torque 23 Nm (17 ftlb.) +/-2 Nm (+/-1.5 ftlb.)

Fig 2: Identifying Brake Master Cylinder Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

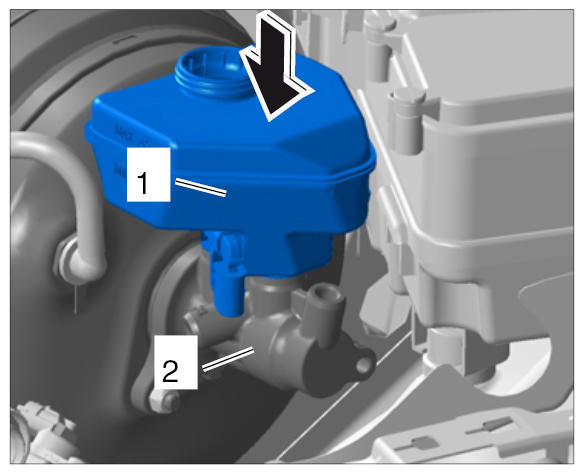

If the brake master cylinder was replaced, press the brake fluid reservoir -2- into the brake master cylinder -2- (-arrow- ).

Fig 3: Fitting Brake Fluid Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

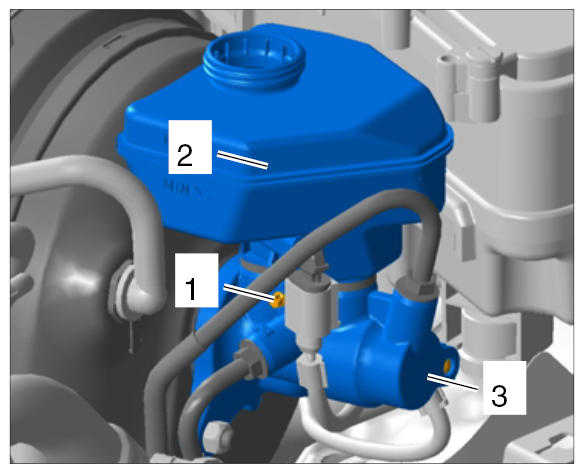

1. 3.1. Fit fastening screw -1- for the brake fluid reservoir -2- on the brake master cylinder -3- .

  Fig 4: Identifying Brake Master Cylinder And Brake Fluid Reservoir Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

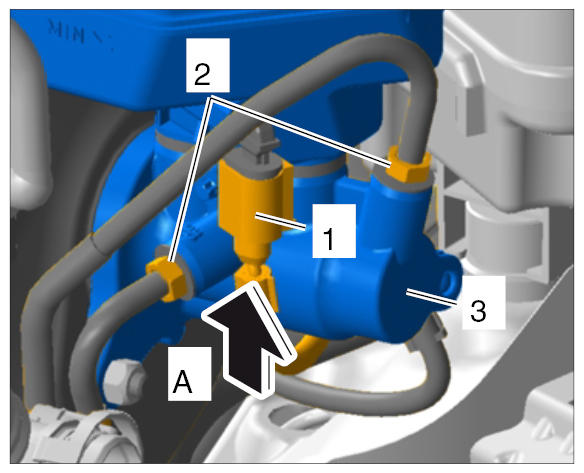

Fit brake lines -2- on the brake master cylinder -3- . Tightening torque 18 Nm (13 ftlb.) +/-2 Nm (+/-1.5 ftlb.)

Fig 5: Fitting Brake Master Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect electric plug connection -1- for the brake fluid level indicator -arrow A- and lock it.
Fit the brake light switch if necessary. → Installing Brake Light Switch

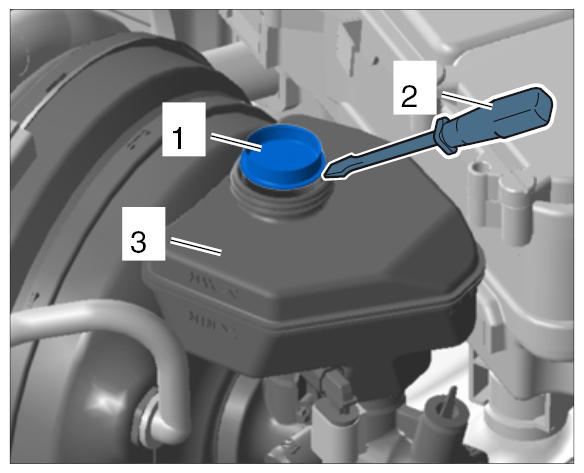

Insert sieve filter -1- into the brake fluid reservoir -3- .

Fig 6: Inserting Sieve Filter In Brake Fluid Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
