Changing Hydraulic Fluid

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The PIWIS Tester II 9818 instructions take precedence and in the event of a discrepancy these are the instructions that must be followed. Deviations may occur with later software versions.

When changing the hydraulic fluid, the clutch system does not have to be bled using PIWIS Tester II. However, the air/leak test must be carried out and clutch adaptation must be performed using PIWIS Tester II.

Brake filling and bleeding device ATE WE 1096 must be connected.
The bleeder valve is located between the engine and drive motor at the bottom left.
Pull the dust boot -1- off the bleeder valve and attach the breather hose.

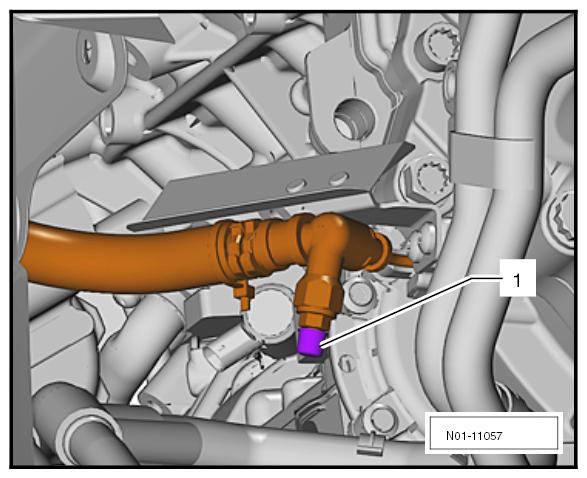

Fig 1: Identifying Installation Position Of Bleeder Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Brake filling and bleeding device ATE WE 1096 must be switched on.
Open the bleeder valve. Drain change quantity of 0.25 liters into the collection container.
Then close the bleeder valve.
Brake filling and bleeding device ATE WE 1096 must be switched off.
Carry out air/leak test.
PIWIS Tester II 9818 must be switched on.
1. 8.1. [Select DIAGNOSTICS.]
2. 8.2. Select vehicle model.
3. 8.3. [DME] must now be selected. Then select [MAINTENANCE/REPAIRS] and press [F12] to confirm.
4. 8.4. You now have the option of creating a V ehicle A nalysis L og ("VAL" ).
5. 8.5. [CLUTCH ACTUATOR AND DECOUPLER] must now be selected. Then press [F12] to confirm.
6. 8.6. Read instructions relating to HV batteries!
7. 8.7. [Check hydraulic system for air/leaks] must now be selected. Then press [F12] to confirm.
Perform clutch adaptation.
PIWIS Tester II 9818 must be connected and switched on until it is ready for operation.
1. 9.1. [Select DIAGNOSTICS.]
2. 9.2. Select vehicle model.
3. 9.3. [DME] must now be selected. Then select [MAINTENANCE/REPAIRS] and press [F12] to confirm.
4. 9.4. You now have the option of creating a V ehicle A nalysis L og ("VAL" ).
5. 9.5. [CLUTCH ACTUATOR AND DECOUPLER] must now be selected. Then press [F12] to confirm.
6. 9.6. Read instructions relating to HV batteries!
7. 9.7. [Clutch adaptation] must be selected. Then press [F12] to confirm.
Adjust fill level in the reservoir to the MAX marking.
