Checking Brake Fluid Level

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The brake fluid level must not exceed the MAX mark.
Observe brake fluid quality. Use only new DOT 4 brake fluid.
This brake fluid is available under the following part numbers: Quantity supplied: 1 liter = 000.043.203.66; 30 liters = 000.043.203.67.

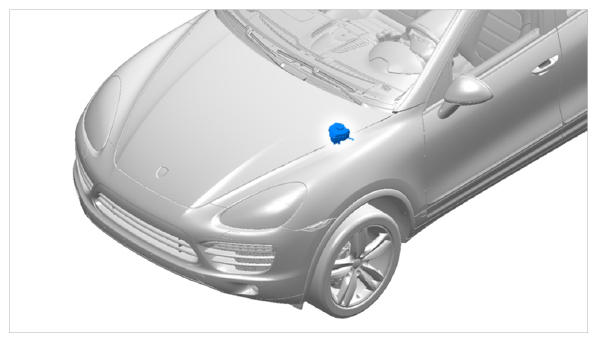

Fig 1: Identifying Brake Fluid Reservoir Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Visually check the brake fluid level. The brake fluid level must be between the MIN and MAX markings -1- . The brake fluid reservoir is located under the left plenum panel cover.

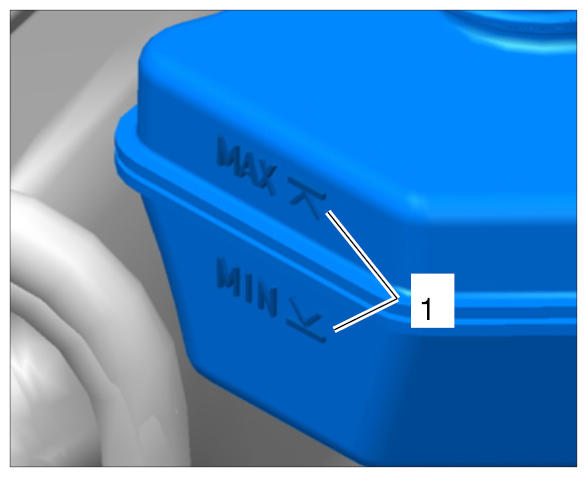

Fig 2: Identifying Min/Max Markings For Brake Fluid
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
