Height Measurement Point On Front Axle

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

The distance between the lower edge of the wing and upper edge of the measured-value pickup -X-  is measured.

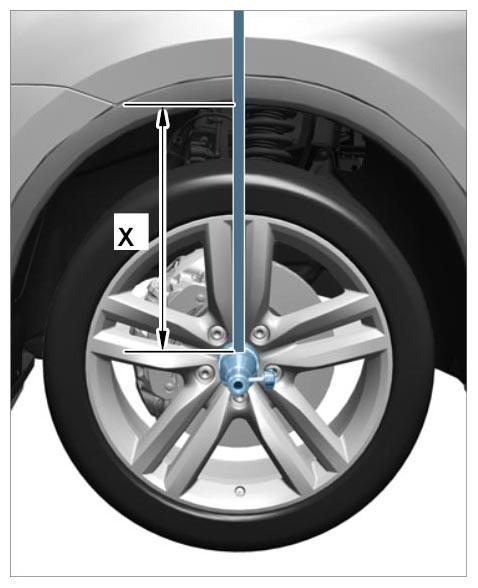

Fig 1: Checking Dimension X - Upper Edge Of Measured-Value Pickup To Lower Edge Of Wing
G09935834Courtesy of PORSCHE CARS NORTH AMERICA, INC.
