Adjusting Rear Axle Toe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Steering-angle sensor not calibrated or calibrated incorrectly

Unexpected vehicle handling
Steering-angle sensor does not function
Malfunction in steering-angle sensor

→ After working on wheel suspension parts, when replacing the steering-angle sensor, and after changing the wheel alignment values, calibrate the steering-angle sensor using the Porsche System Tester. → 456005 INITIALIZING AND CALIBRATING STEERING-ANGLE SENSOR

→ Keep the front wheels in straight-ahead position on the measuring platform during calibration.

→ Check the actual value of the steering-angle sensor after suspension alignment where no changes were made to the wheel alignment values.

Always observe specified tightening torque for lock nut on toe eccentric adjuster -B- ! Tightening torque 170 Nm (126 ftlb.)

The toe is adjusted at the toe eccentric adjuster -B- !

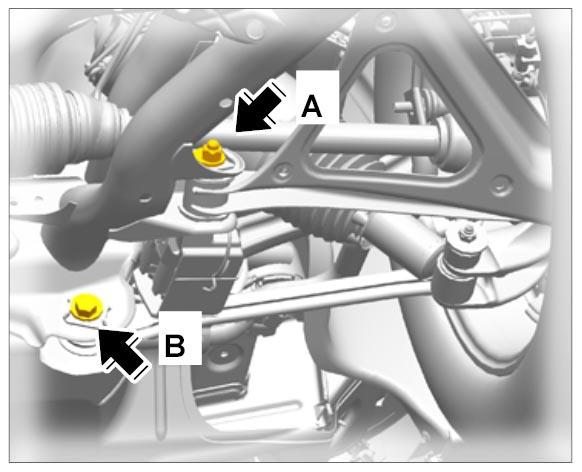

Fig 1: Locating Toe Eccentric Adjuster B

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

After loosening the lock nut, turn toe eccentric adjuster -B- as required.

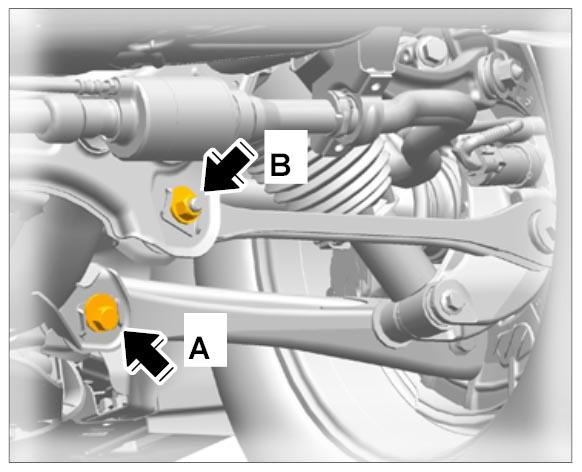

Fig 2: Locating Toe Eccentric Adjuster B
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
