Adjusting Front Axle Caster

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Always observe specified tightening torque for lock nut on caster eccentric adjuster -B-  ! Tightening torque 170 Nm (126 ftlb.)

Caster is adjusted at the caster eccentric adjuster -B-  .

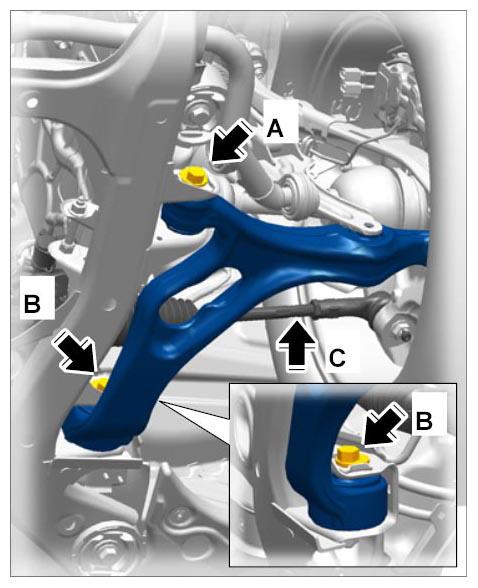

Fig 1: Locating Caster Eccentric Adjuster B
G09935839Courtesy of PORSCHE CARS NORTH AMERICA, INC.
