General Information On Wheel Bolts
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Always observe the specified tightening torque!
- Use a suitable commercially available tool (a/f 19 mm). Never use an impact bolter to loosen and tighten the wheel bolts.
- Only use original Cayenne wheel bolts.
- The wheel bolt consists of two parts that are permanently joined together.
- Wheel bolts must never be reworked.
- Always replace damaged wheel bolts.
- This damage includes mechanical damage to the thread, the spherical cap and damage resulting from seizure of the bolt head bearing surface and spherical cap ring! It must be possible to rotate the spherical cap ring on the bolt shank and to move it in axial direction.
- The wheel bolts and security wheel bolts must never be greased.

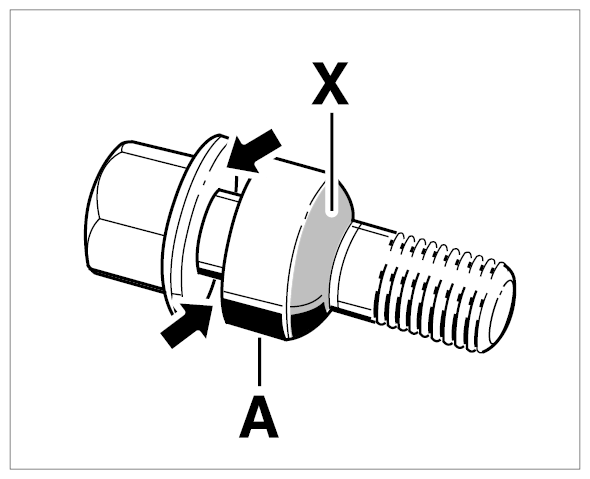

-A- - Spherical cap ring (permanently connected to the wheel bolt)
-X- - Spherical cap bearing surface facing the wheel (do not grease)
-Arrows- - Spherical cap bearing surface facing the bolt head (do not grease)
-Thread- - Thread (do not grease)
