Assembly Overview - Oil Pan, Oil Pump, Engine Oil Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Nut → Tightening torque: 9 Nm (6.5 ftlb.)
Oil level and oil temperature sensor
Sealing ring/replace
Lower part of oil pan
Replace screw → Tightening torque: 9 Nm (6.5 ftlb.)
Baffle plate (bottom)
Screw/replace
Upper part of oil pan
Dowel sleeve
O-ring/replace
Screw → Tightening torque: 9 Nm (6.5 ftlb.)
Baffle plate (top)
Seal/replace
Seal/replace
Screw/replace → Initial tightening: 3 Nm (2 ftlb.) → Final tightening: +90°
Engine oil cooler
Screw → Tightening torque: 9 Nm (6.5 ftlb.)
Drive shaft for oil pump
Compression spring
Sleeve
Mounting saddle
Screw → Tightening torque: 9 Nm (6.5 ftlb.)
Oil pump sprocket
Screw/replace → Initial tightening: 30 Nm (22 ftlb.) → Final tightening: +90°
O-ring/replace
Seal/replace
O-ring/replace
Oil pump
Screw → Tightening torque: 20 Nm (15 ftlb.)
Screw/replace
Sealing ring/replace
Oil drain plug → Tightening torque: 30 Nm (22 ftlb.)

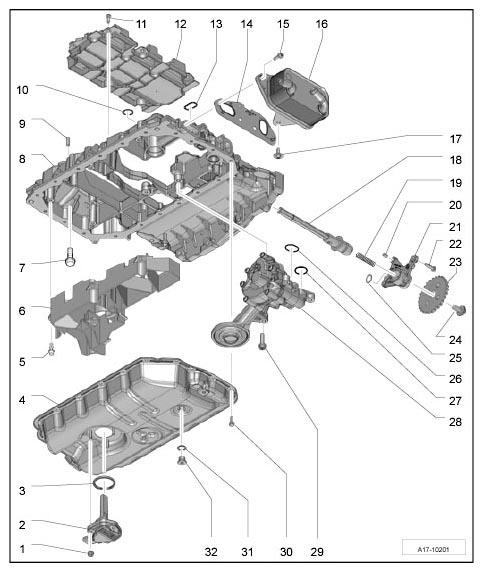

Fig 1: Overview - Oil Pan, Oil Pump, Engine Oil Cooler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of oil pan - tightening torque and tightening sequence:

Tighten screws in two steps as follows:

Step 1: 5 Nm (3.5 ftlb.) in diagonally opposite sequence

Step 2: Turn 90° further in diagonally opposite sequence

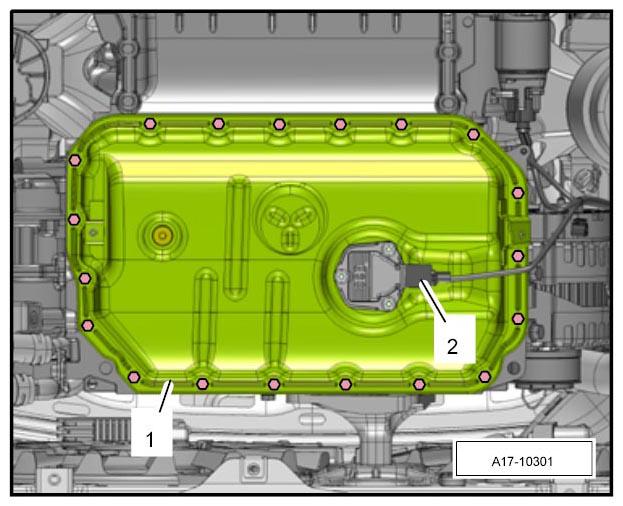

Fig 2: Identifying Oil Pan Lower Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of oil pan - tightening torque and tightening sequence:

Tighten screws in two steps as follows:

Step 1: 8 Nm (6 ftlb.) in diagonally opposite sequence

Step 2: Turn 90° further in diagonally opposite sequence

Fig 3: Identifying Oil Pan Upper Part

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
