Installing Oil Pan

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Apply a bead of sealant sealant 000.043.300.39 to the oil pan.
Sealing surfaces must be clean and free of grease .
NOTE:
Oil pump suction line blocked
- Risk of engine damage
→ The bead of sealing compound must not be thicker than → Diameter: 3 mm .

Guide the bead of sealant past the inside of the screw holes -arrows- .

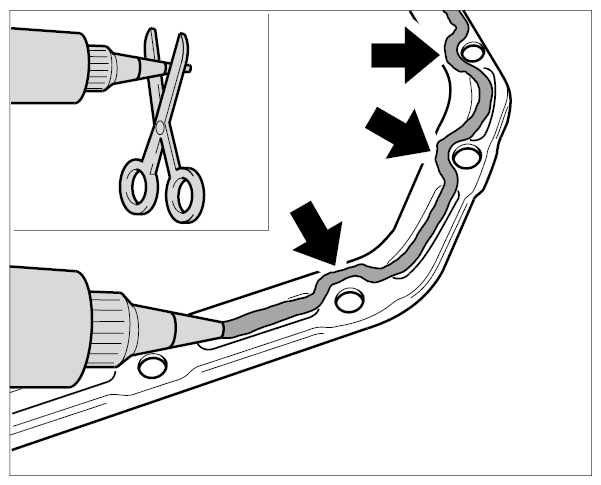

Fig 1: Locating Oil Pan Sealant Applying Area
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit oil pan on the crankcase and tighten fastening screws in numerical order (1... 25). → Tightening torque: 12 Nm (9 ftlb.)

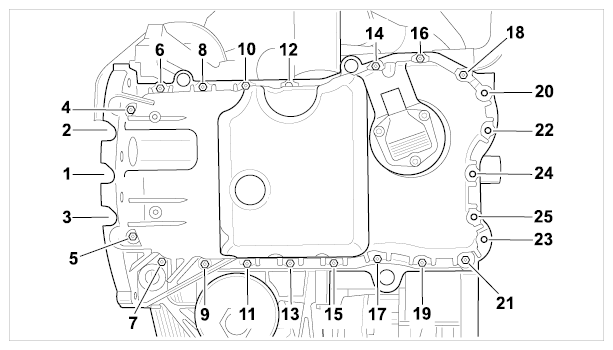

Fig 2: Oil Pan Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- After fitting the oil pan, the sealant must be allowed to dry for approx. 30 minutes .
- Then fill in engine oil .
Fill in engine oil of the stipulated viscosity and quality and check the oil level.→ 170117 CHANGING ENGINE OIL AND OIL FILTER

Fig 3: Locating Oil Dipstick Mark
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
