Removing Oil Guide Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Information

The tightening specifications for the basic engine are stored centrally (→ 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS ).

Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.

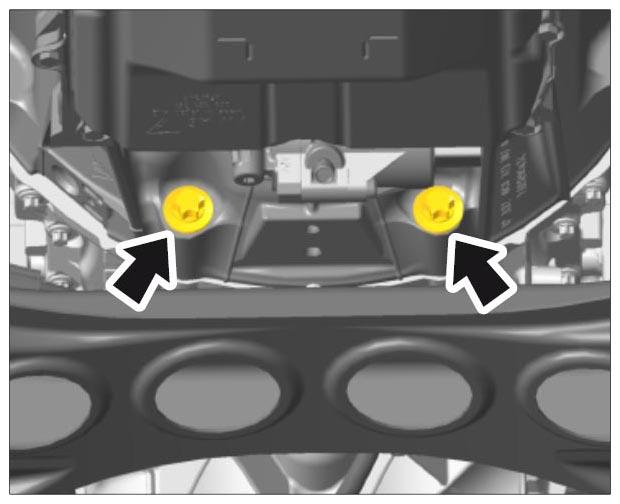

  1. Remove the bottom two screws between the transmission and oil guide housing.
    Fig 1: Locating Oil Guide Housing And Transmission Screws
    G09932790Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. After removing the oil guide housing, the connecting tubes (oil lines and oil pipes) between the oil pump and oil guide housing must be removed. Do not forget the side oil suction pipes on the turbo engine. See illustrations below.

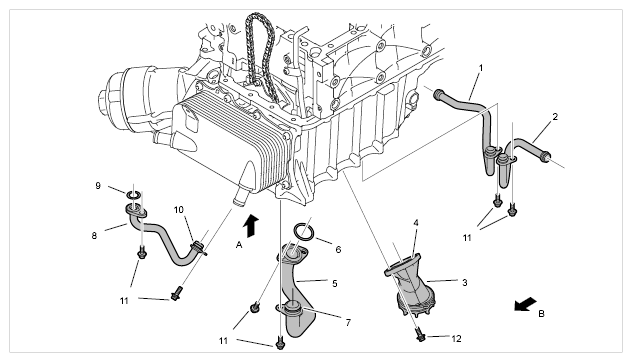

    1. Oil extraction line for turbocharger, cylinders 1 to 4
    2. Oil extraction line for turbocharger, cylinders 5 to 8
    3. Intake pipe on oil pump
    4. O-ring
    5. Oil pressure pipe
    6. O-ring
    7. O-ring, 22 x 3
    8. Oil regulating line
    9. O-ring
    10. O-ring
    11. Screw, M6 x 16; oil pressure pipe to oil pump and oil guide housing; oil regulating line to oil pump and oil guide housing; turbocharger extraction line to oil pump
    12. Screw, M6 x 20
    13. Fig 2: Identifying Oil Lines - Turbo Engine
      G09932791Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. For arrangement of oil lines, see other illustrations below
    2. Direction of travel

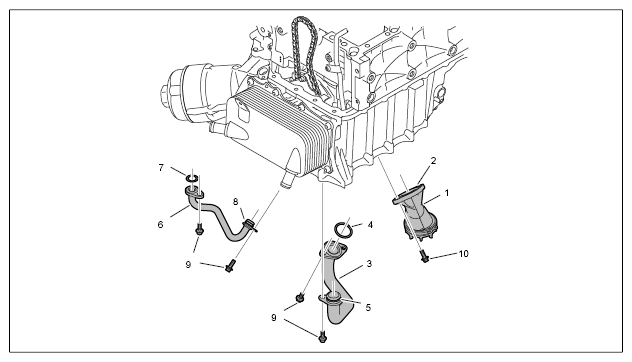

    1. Intake pipe on oil pump
    2. O-ring
    3. Oil pressure pipe
    4. O-ring
    5. O-ring
    6. Oil regulating line
    7. O-ring
    8. O-ring
    9. Screw, M6 x 16; oil pressure pipe to oil pump and oil guide housing; oil regulating line to oil pump and oil guide housing
    10. Screw, M6 x 20
    11. Fig 3: Identifying Oil Lines - Naturally Aspirated Engine
      G09932792Courtesy of PORSCHE CARS NORTH AMERICA, INC.

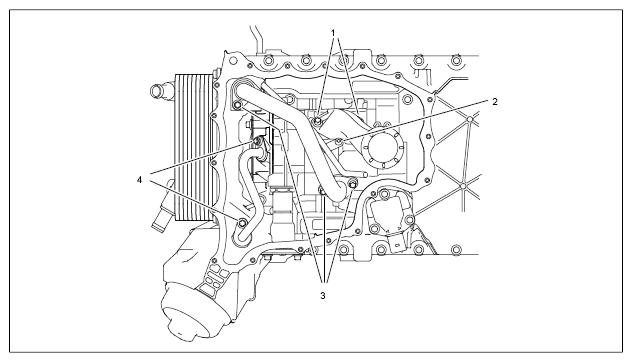

    1. - Mounting for oil extraction line for turbocharger, cylinders 1 to 4
    2. - Mounting for oil extraction line for turbocharger, cylinders 5 to 8
    3. - Mounting for oil separator vent line, cylinders 5 to 8
    4. - Mounting for oil pump intake pipe
    5. - Mounting for oil pressure pipe
    6. - Mounting for oil regulating line
    1. Direction of travel
    2. Fig 4: Identifying Oil Lines And Intake Pipe - Turbo Engine
      G09932793Courtesy of PORSCHE CARS NORTH AMERICA, INC.

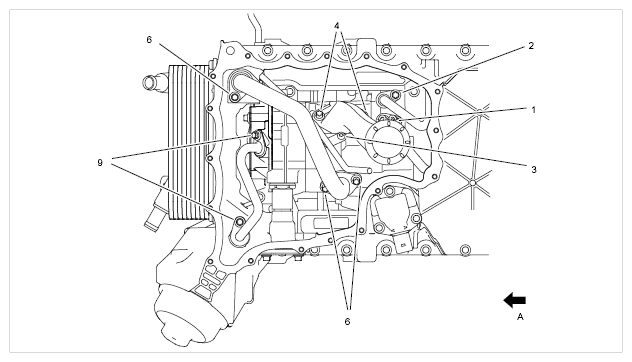

    1. Mounting for oil pump intake pipe
    2. Mounting for oil separator vent line, cylinders 5 to 8
    3. Mounting for oil pressure pipe
    4. Mounting for oil regulating line
    Fig 5: Identifying Oil Lines, Intake Pipe - Naturally Aspirated Engine
    G09932794Courtesy of PORSCHE CARS NORTH AMERICA, INC.

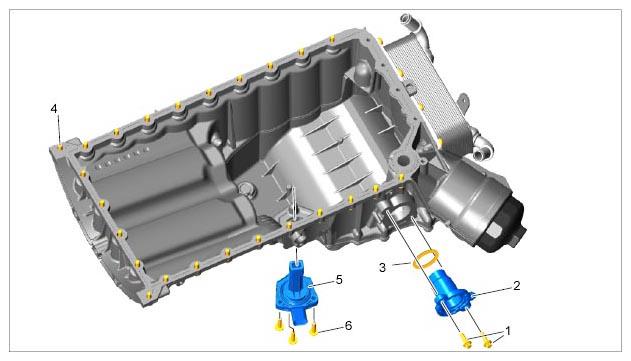

  3. Loosen the oil guide housing. To do this, unscrew the screws -4-  for the lower part of the crankcase.
    1. Screws, M6 x 20
    2. Sealing flange
    3. O-ring
    4. M6 screw; oil level sensor to oil guide housing
    5. Oil level sensor
    6. M6 screw; oil guide housing to lower part of crankcase
    Fig 6: Identifying Oil Guide Housing With Accessories
    G09932795Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove bonding (sealant) between the oil guide housing and crankcase. Carefully prise off the cast lugs using a screwdriver or a soft rubber hammer if necessary.
  5. Guide the oil guide housing carefully around the oil pump and remove it.
  6. Remove sealing ring for the lower part of the crankcase.
  7. Clean sealing faces. Brush off remaining sealant with a plastic brush and then degrease the sealing face.
