Component Information

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

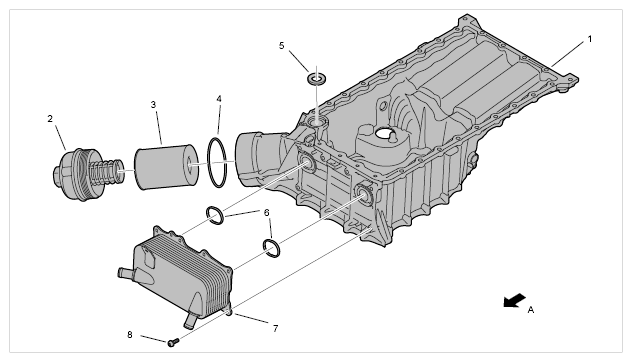

  1. Oil guide housing
  2. Oil-filter housing
  3. Oil filter
  4. Oil-filter sealing ring
  5. Oil duct adapter (cannot be replaced)
  6. Heat exchanger seal
  7. Oil/coolant heat exchanger
  8. Screw, M6 x 20; self-tapping screws ex-works; metric screws can also be used
  1. Direction of travel
    2. Fig 1: Identifying Oil/Coolant Heat Exchanger Components
    G09932787Courtesy of PORSCHE CARS NORTH AMERICA, INC.

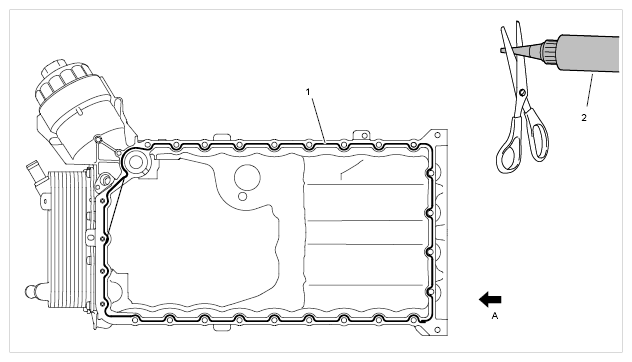

  1. Sealant application (geometry, 1-mm bead of sealant)
  2. Doboseal sealing compound
  1. Direction of travel
    2. Fig 2: Identifying Oil Guide Housing Sealant Applying Area
    G09932788Courtesy of PORSCHE CARS NORTH AMERICA, INC.

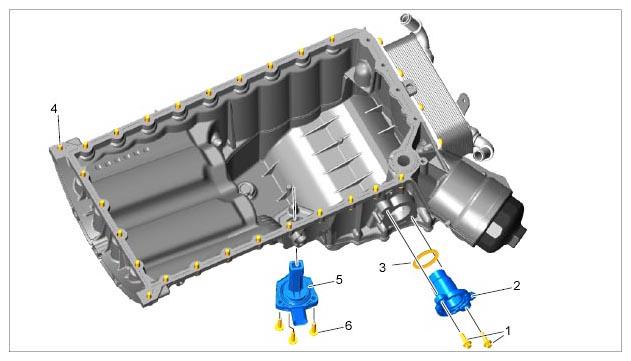

  1. Screws, M6 x 20
  2. Sealing flange
  3. O-ring
  4. M6 screw; oil level sensor to oil guide housing
  5. Oil level sensor
  6. M6 screw; oil guide housing to lower part of crankcase
    7. Fig 3: Identifying Oil Guide Housing With Accessories
    G09932789Courtesy of PORSCHE CARS NORTH AMERICA, INC.
