Installing Oil/Water Heat Exchanger (Oil Cooler)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Sealing rings must be replaced .

Place the two sealing rings in installation position.
Position the oil/water heat exchanger on the oil-filter housing/assembly mount and insert the oil cooler cover through. Screw the oil cooler cover (banjo bolt) on hand-tight.
Tighten the oil cooler cover (banjo bolt). → Tightening torque: 25 Nm (19 ftlb.) .

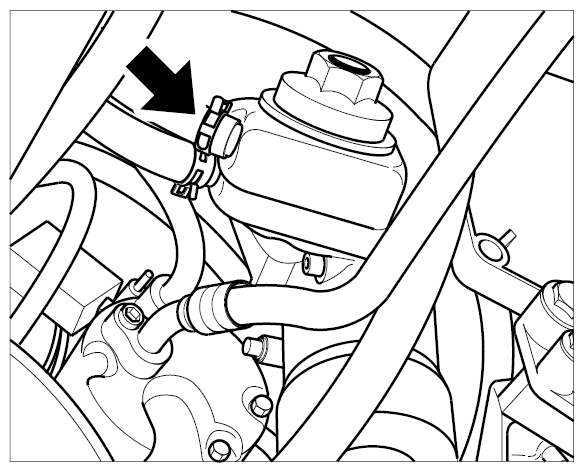

Fit the two coolant hoses on the oil/water heat exchanger -arrow- .

Fig 1: Locating Coolant Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

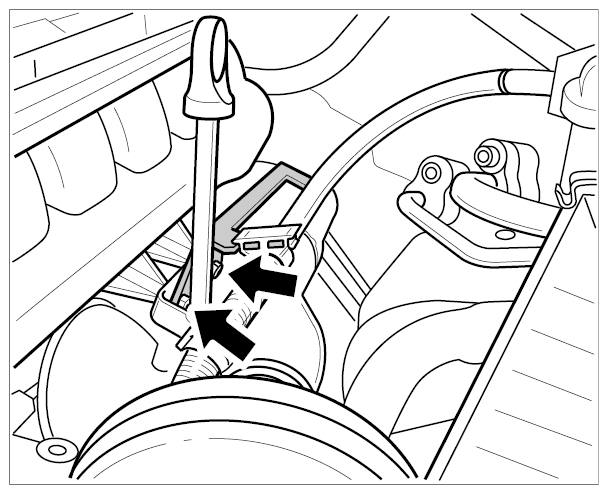

Move holder into installation position. Fit fastening nuts for the hose holder -arrows- . → Tightening torque: 8 Nm (6 ftlb.) .

Fig 2: Identifying Sheetmetal Holder Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
