Removing Oil Cooler

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect coolant hoses.
    1. 1.1. Loosen the clips -1-  on the coolant hoses at the oil cooler and slide them onto the hoses -A-  .
    2. 1.2. Clamp the hoses using hose clamp 3093  or hose clamp 3094  .
    3. 1.3. Unclip the coolant hose assembly -3-  on the oil cooler from the holder -2-  (-B-  ).
    4. 1.4. Pull off hoses -C-  .

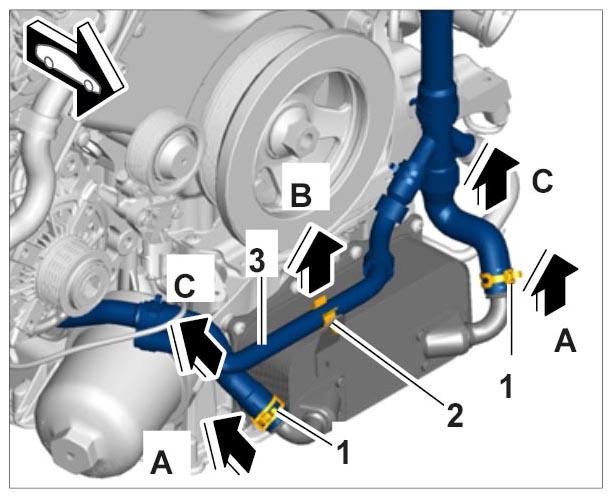

      Fig 1: Removing Coolant Hoses
      G09932746Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove oil cooler.
    1. 2.1. Unscrew and remove fastening screws -1-  .
    2. 2.2. Tilt oil cooler at the top in direction of travel -A-  .
    3. 2.3. Remove oil cooler.
    4. 2.4. Soak up emerging oil with a cloth.

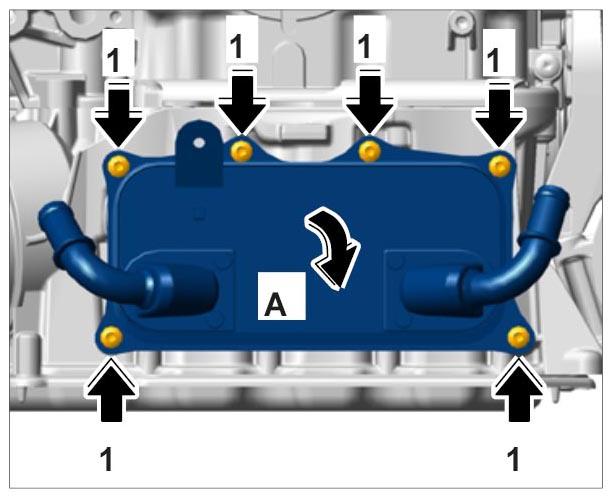

      Fig 2: Removing Oil Cooler
      G09932747Courtesy of PORSCHE CARS NORTH AMERICA, INC.
