Removing Oil Pressure Control Valve (Solenoid Valve) On 4.8-Liter DFI Engines

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

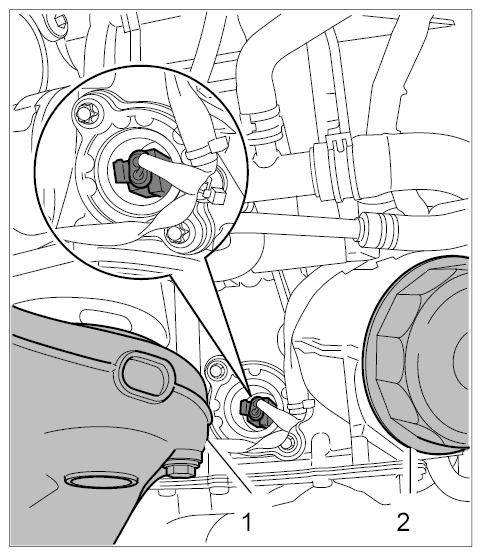

The oil pressure control valve is fitted in the oil guide housing under the generator between the engine carrier -1- and oil filter -2- .

Fig 1: Identifying Pressure Control Valve Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully grip the cable plug on the oil pressure control valve with a pointed-nose pliers and release it. Pull off cable plug.
Expose cable and set it aside. -cable-

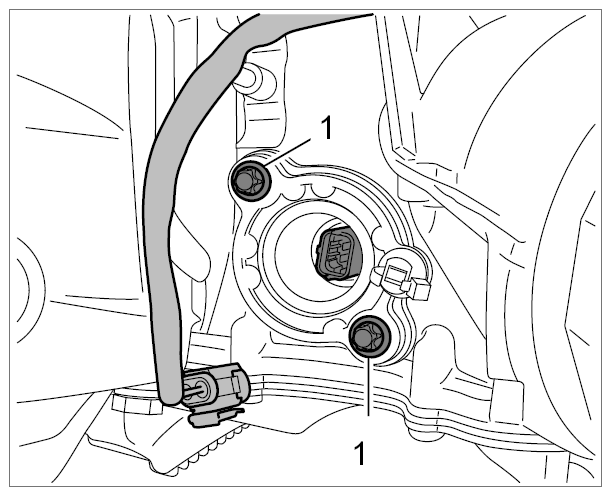

Fig 2: Identifying Oil Pressure Control Valve Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove screws on joint flange. -1-

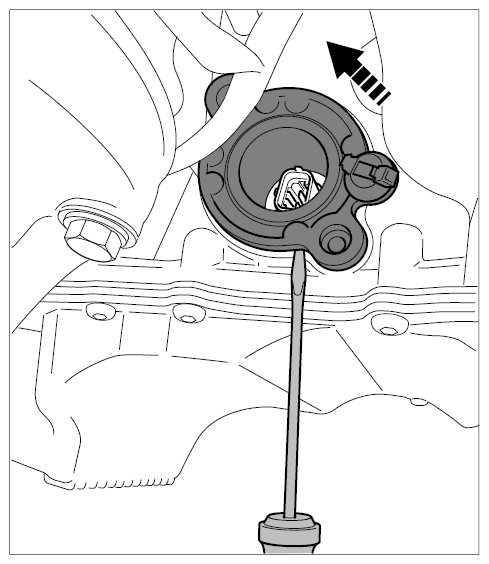

Carefully lever off the joint flange with a screwdriver → Levering off joint flange . Overcome the resistance of the two sealing rings on the oil pressure control valve while doing this.

Fig 3: Removing Pressure-Regulating Valve Joint Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

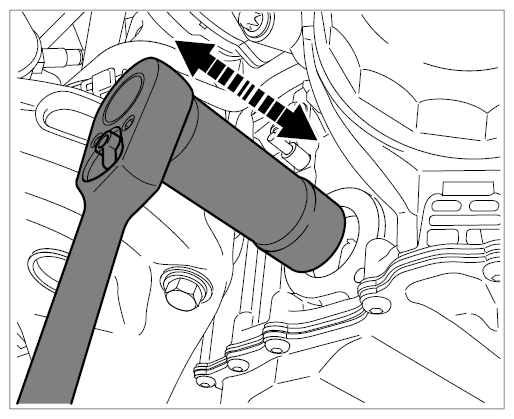

Fit special socket socket-wrench insert 9753 on a ratchet through the opening in the oil guide housing and loosen cap screw on oil pressure control valve. → Using special socket

Fig 4: Installing Socket-Wrench (9753)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

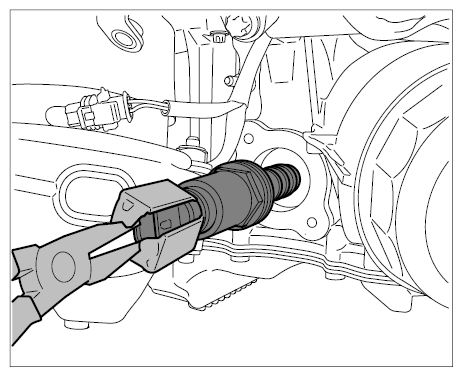

Grip oil pressure control valve with a relay puller 9235 and turn carefully to remove it. → Removing/fitting oil pressure control valve

Fig 5: Removing Oil Pressure Control Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
